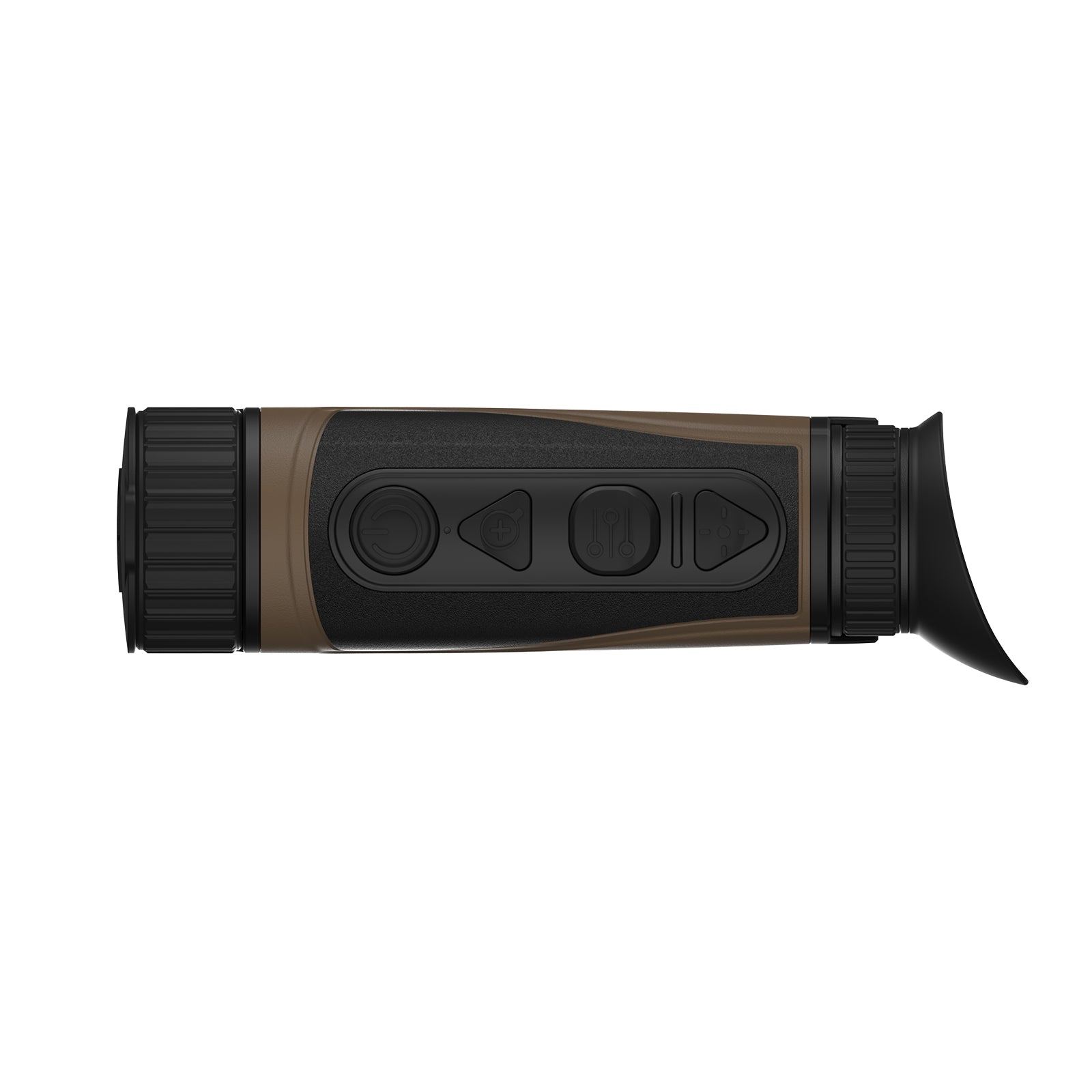

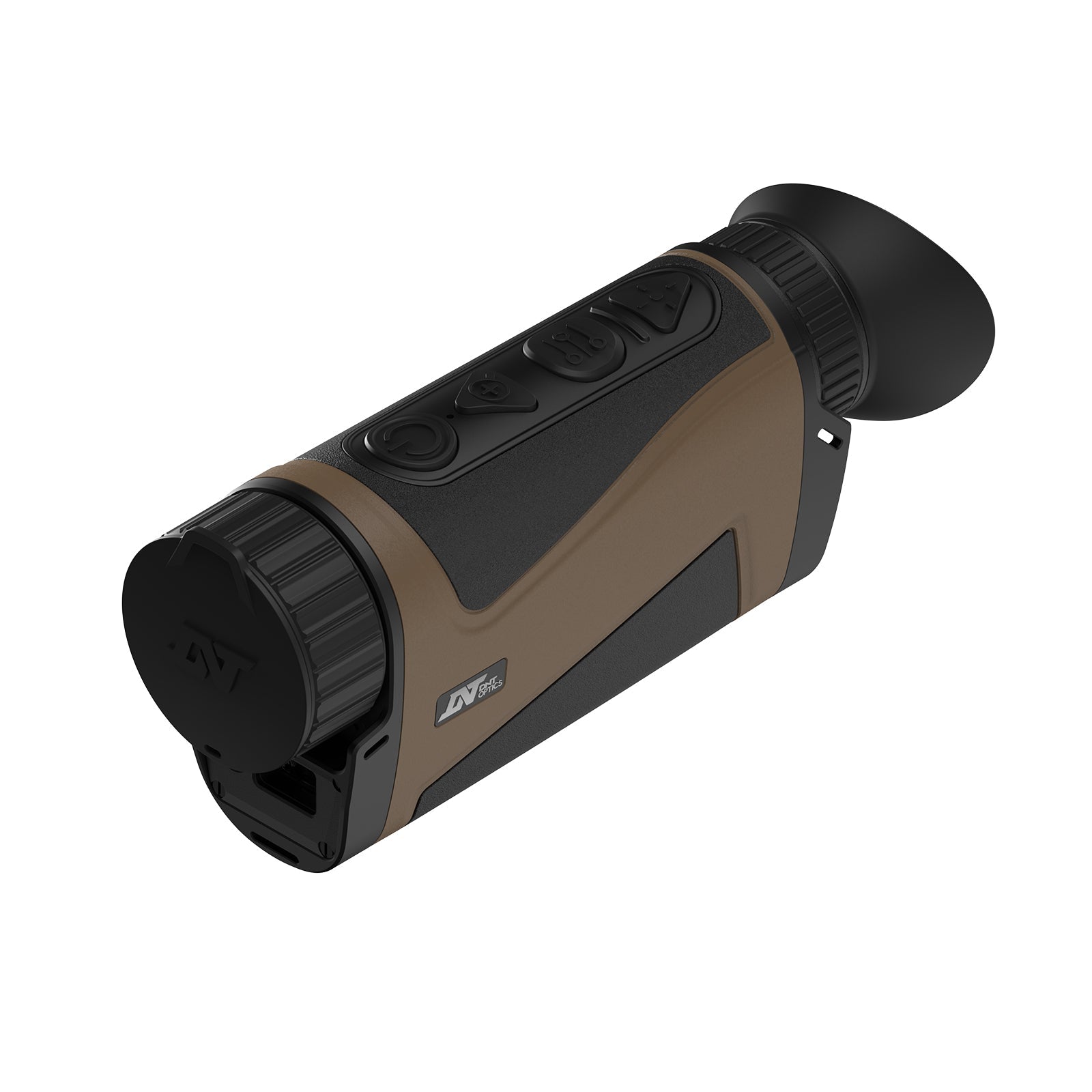

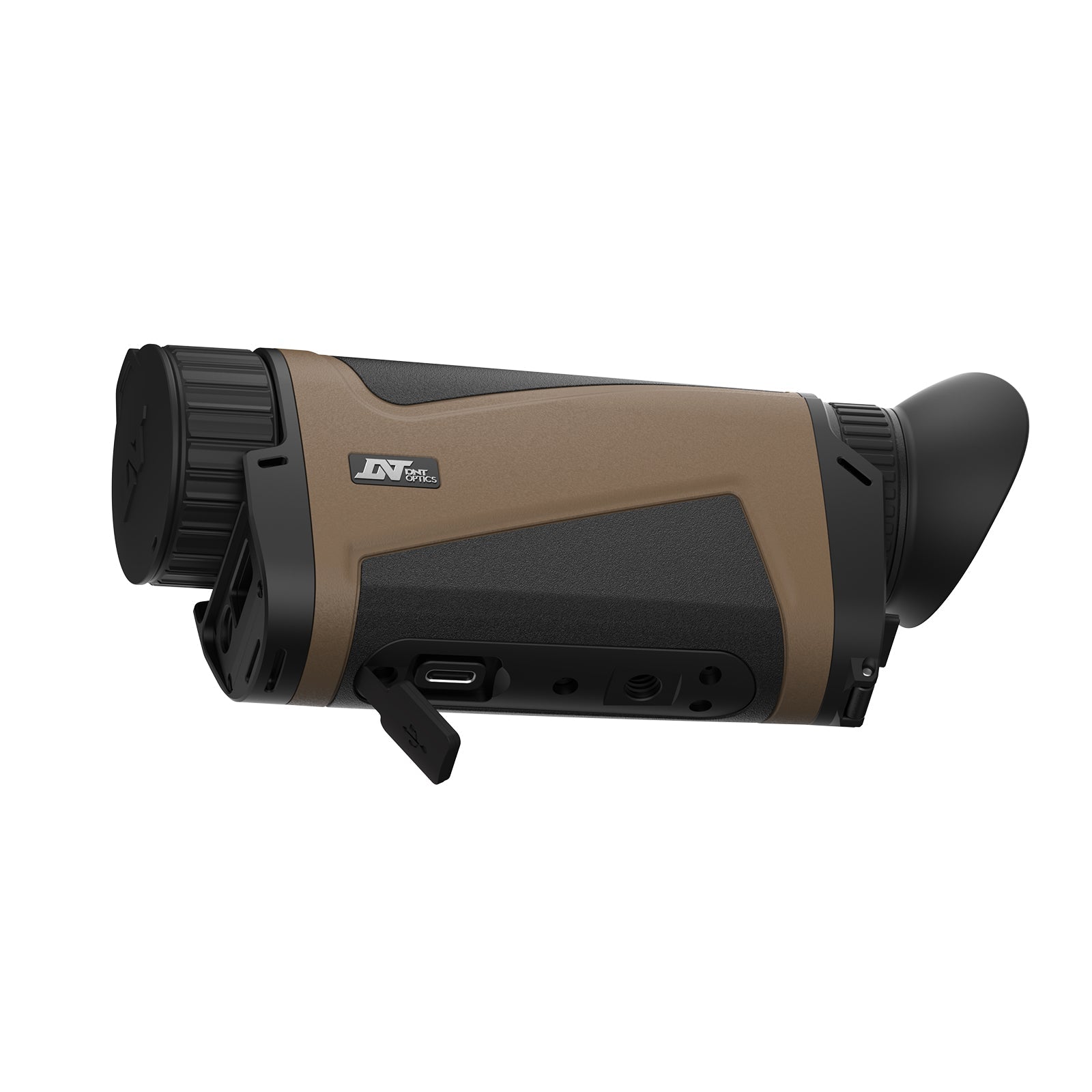

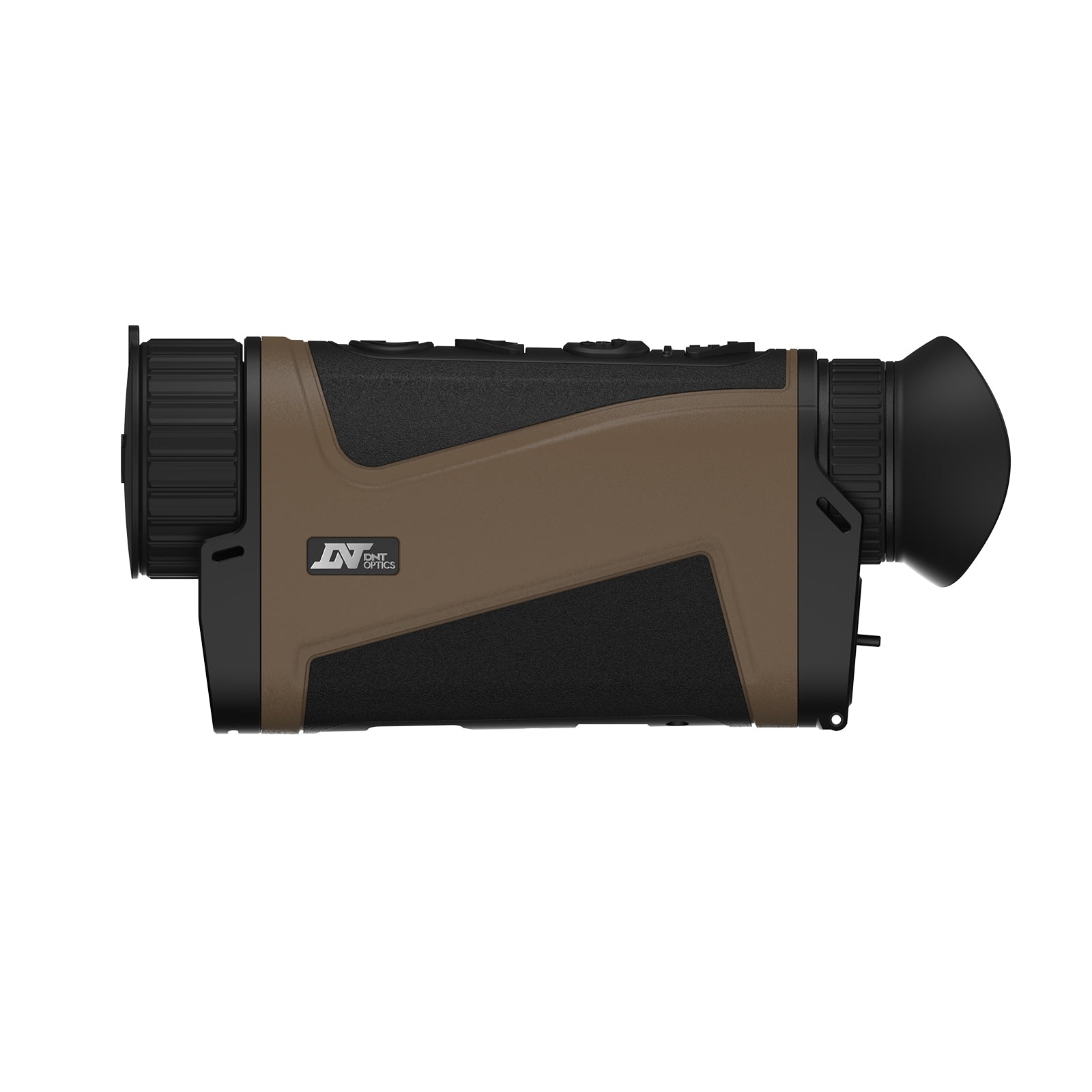

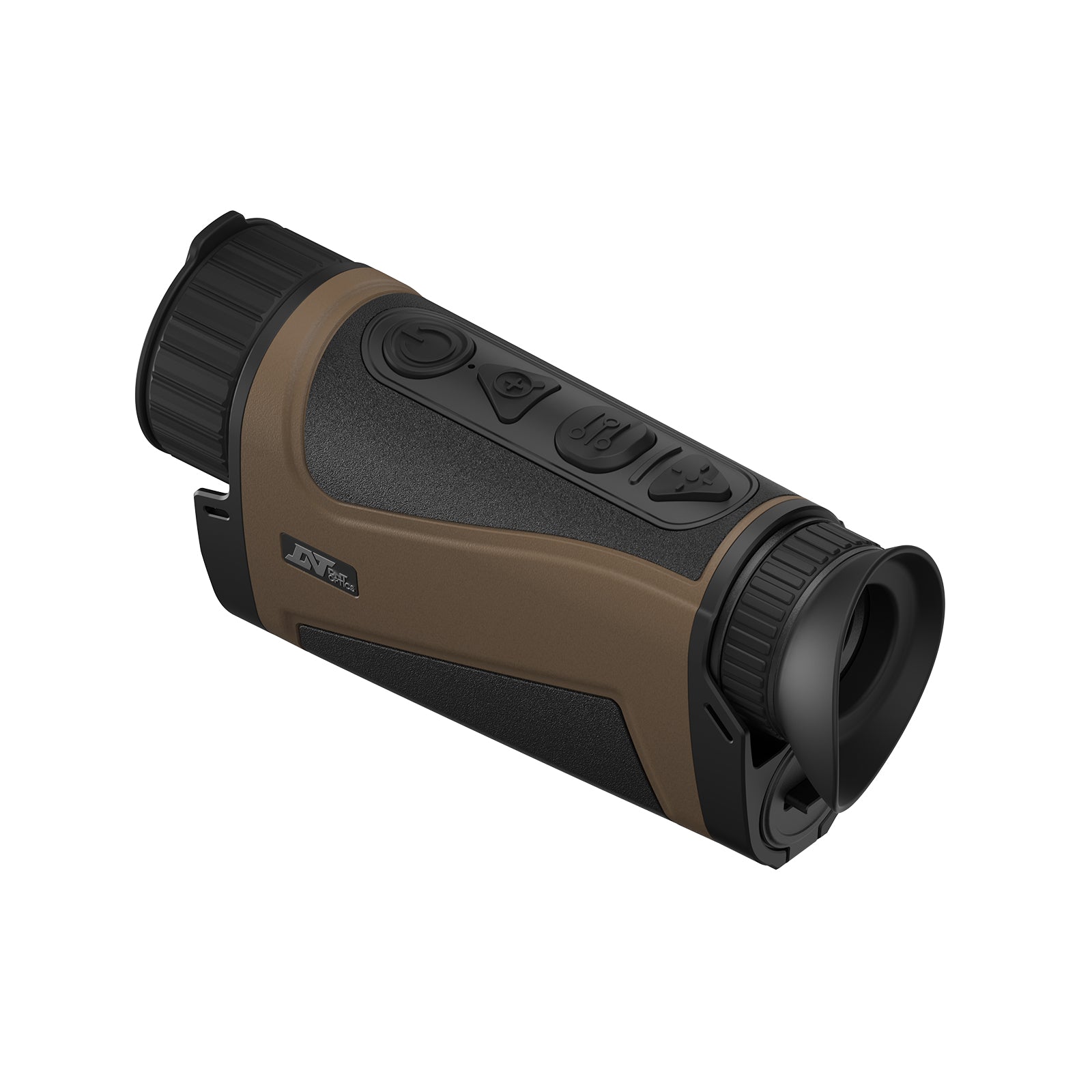

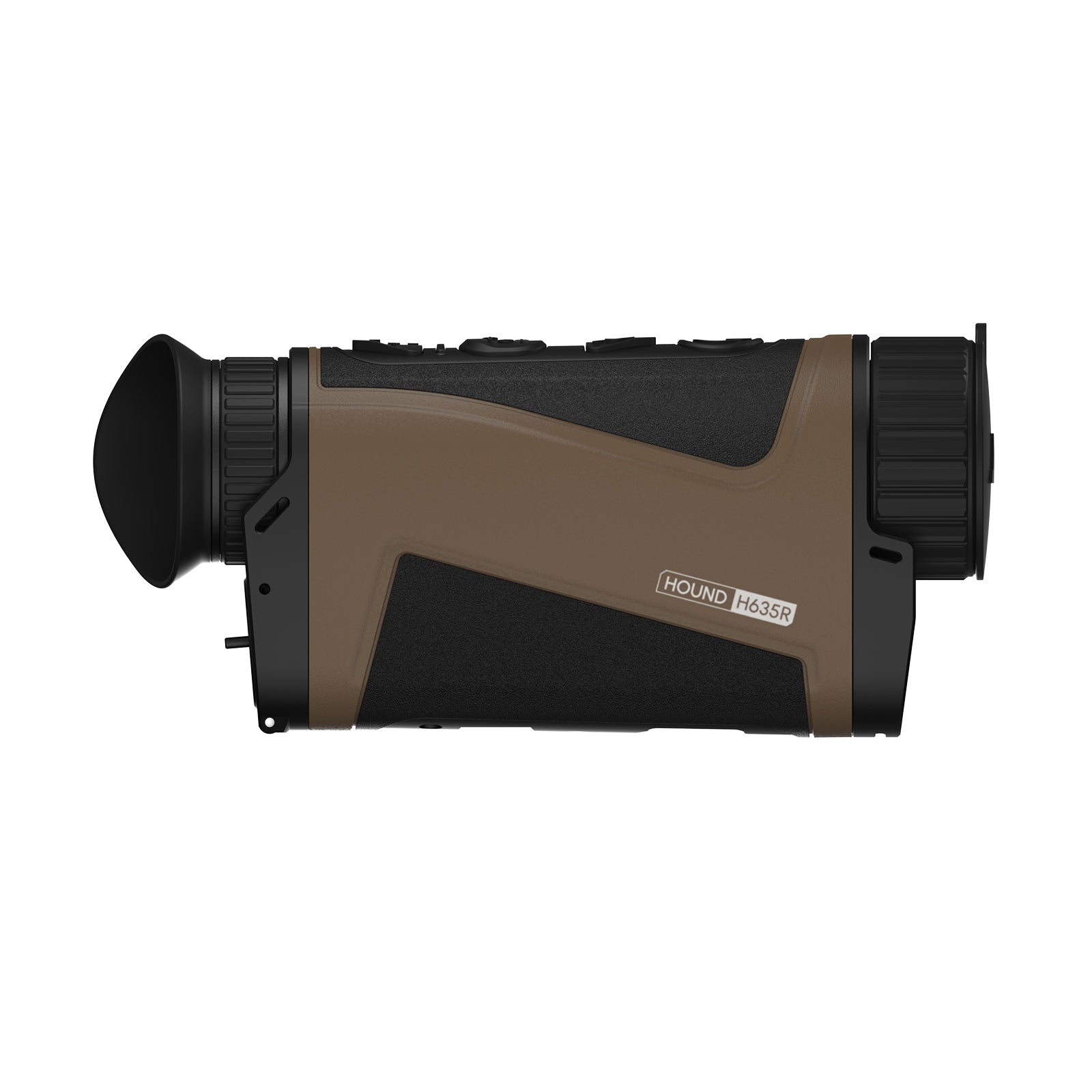

DNT Hound H635R 640x512 Thermal Monocular with LRF

The DNT Hound H635R is a handheld thermal imaging monocular with a built-in laser rangefinder and ballistic calculator. A 640×512 12μm uncooled sensor gives a clear, high-sensitivity thermal picture, and the rangefinder pairs with custom ballistic profiles so you can range the target and get a firing solution in one unit.

Key Features

• 640×512 Thermal Sensor – 12μm pixel pitch, ≤18mK NETD for a clear, high-sensitivity image
• Laser Rangefinder & Ballistic Calculator – ranges to 1,200 yards and pairs with custom ballistic profiles
• 35mm Lens – 2× base magnification, 2–8× digital zoom
• AI Super Resolution – DNT's algorithm sharpens the thermal image
• Four Thermal Palettes – White Hot, Black Hot, Red Hot and Iron Hot
• 1024×768 Micro-OLED Display – 50Hz refresh
• Wi-Fi & DNT App – with 32GB built-in storage
• IP67 Waterproof

Specification

• Brand: DNT Optics
• Model: Hound H635R
• SKU: H635R
• Thermal Sensor: 640 × 512, uncooled
• Pixel Pitch: 12μm
• NETD: ≤18mK @25°C
• Frame Rate: 50 fps
• Lens: 35mm
• Magnification: 2× base, 2–8× digital
• Field of View: 21.9 × 17.6 yd @100 yards
• Display: Micro-OLED, 1024×768, 50Hz
• Eye Relief: 25mm
• Laser Rangefinder: 5–1,200 yards
• Ballistic Calculator: Yes, custom profiles
• Battery: 18650 flat-top, approx. 5 hours
• External Power: 5V USB Type-C
• Memory: 32GB built-in
• Weight: 10.93 oz (≈310 g)
• Dimensions: 6.2 × 2.2 × 2.8 in
• Waterproof Rating: IP67
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)
• Connectivity: Wi-Fi, DNT app
• Warranty: 2 years
• In Box: Hound H635R monocular, carrying pouch, lanyard, wrist strap, USB data cable, charging cable, user manual, lens cleaning cloth, quick-start guide
