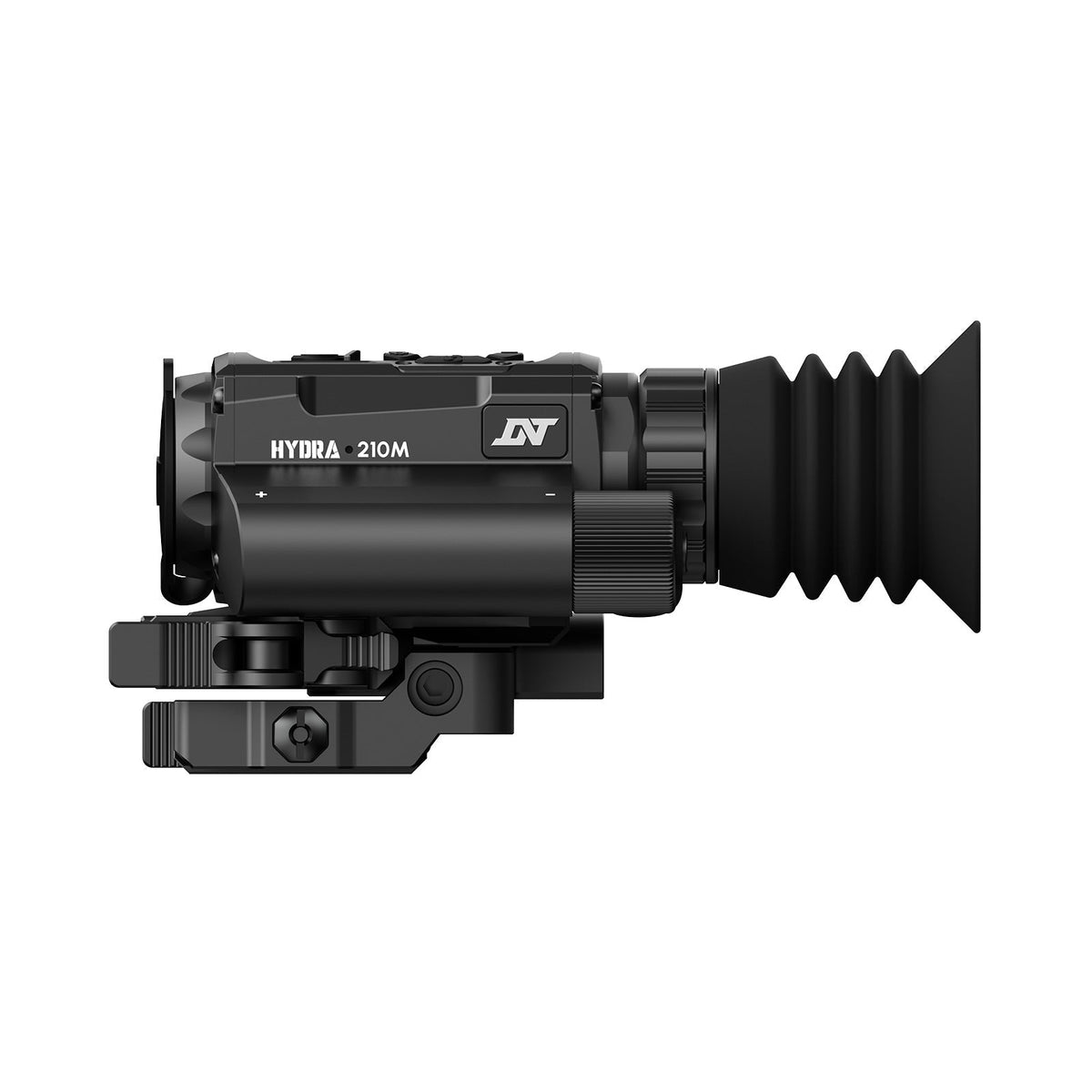

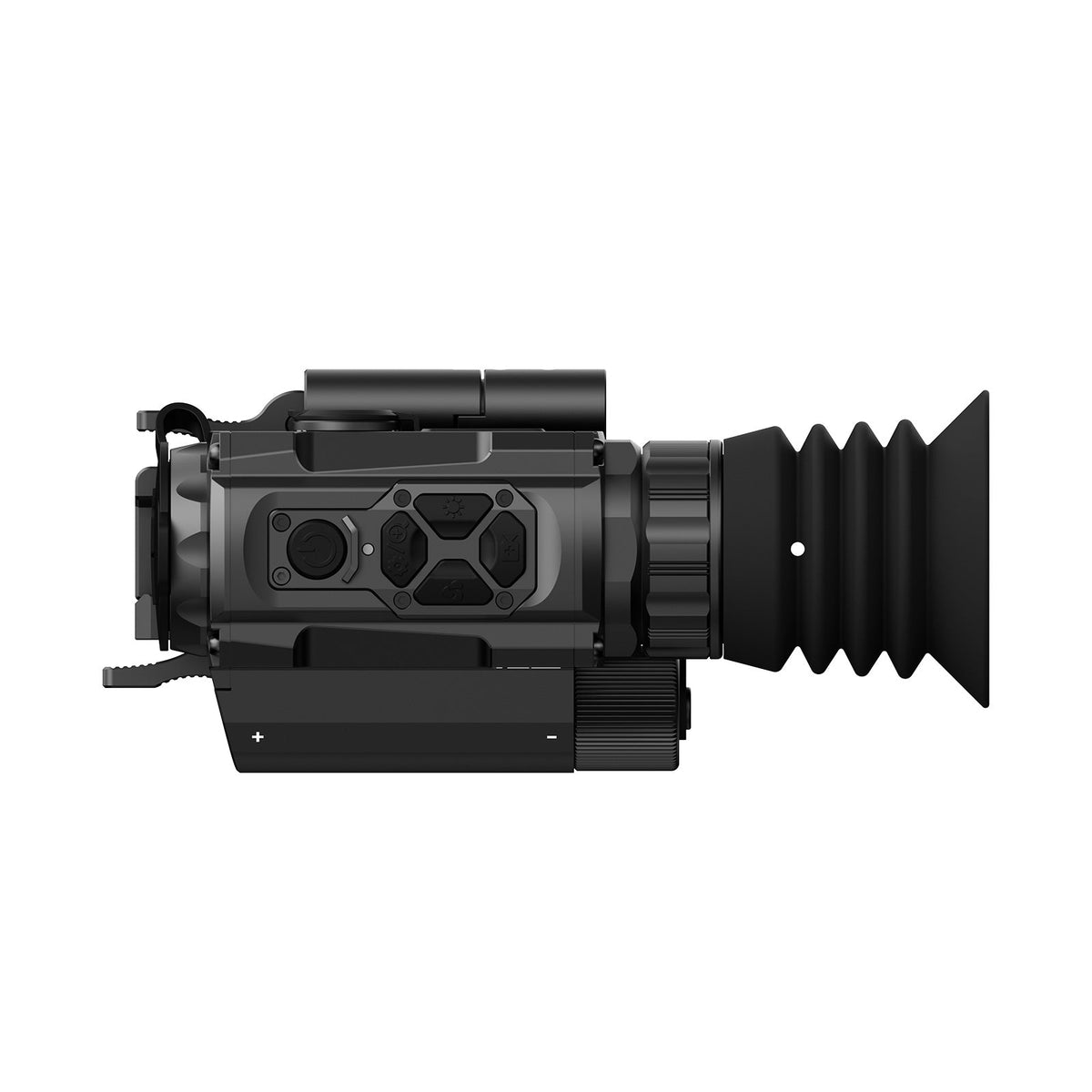

DNT Hydra-Mini HS210M 256x192 Thermal Scope

The DNT Hydra-Mini HS210M is a compact thermal optic that works four ways — as a standalone thermal scope, a clip-on ahead of your day scope, a handheld monocular for scanning, or helmet-mounted. It is built around a 256×192 12μm thermal sensor with ≤18mK NETD and always-on AI image super resolution, and weighs 320g without battery or mount.

Key Features

• Four-in-One Design – standalone scope, clip-on, handheld monocular or helmet-mounted
• 256×192 Thermal Sensor – 12μm pixel pitch with ≤18mK NETD
• AI Image Super Resolution – always-on processing for a cleaner, more detailed thermal image
• QDF193 Mount Included – dual quick-detach flip-to-side mount for fast switching between setups, with reliable zero retention after removal and refitting
• Clip-On Use – fixed 1x thermal view in front of your day optic; DNT recommends day optics with 1–2x base magnification
• Display and Reticle Options – 4 colour palettes, 8 reticle styles, 5 reticle colours and a 2x Picture-in-Picture window
• Onboard Recording – video and audio to 32GB of built-in storage
• DNT App – connect over Wi-Fi for a live view and to replay recordings
• Battery Life – up to 7 hours per 18650 flat-top battery, or run it from USB-C
• Tough Build – aluminium alloy chassis, IP67 rated
• 2-Year Warranty

Specification

• Brand: DNT Optics
• Model: Hydra-Mini HS210M
• SKU: HS210M
• Thermal Sensor: 256 × 192, uncooled infrared
• Pixel Pitch: 12μm
• NETD: ≤18mK
• Sensor Frame Rate: 40fps
• Base Magnification: 1x (digital zoom 1x, 2x, 4x)
• Objective Lens: 10mm focal length
• Field of View: 17.5° horizontal (30.7 yd at 100 yd)
• Eye Relief: 65mm
• Display: Micro-OLED, 1024 × 768, 50Hz
• Storage: 32GB built-in; records 1024 × 768 at 50fps
• Connectivity: Wi-Fi and DNT App
• Battery: 18650 flat-top, up to 7 hours per battery; 5V USB-C external power
• Weight: 320g (550g with battery and mount)
• Dimensions: 103 × 68 × 51mm
• Chassis: Aluminium alloy
• Ingress Protection: IP67
• Operating Temperature: −20 to 50°C
• Helmet Use: needs a helmet with a compatible shroud and mount, plus a Wilcox or KVC/RQE dovetail binocular bridge (not supplied)
• Warranty: 2 years

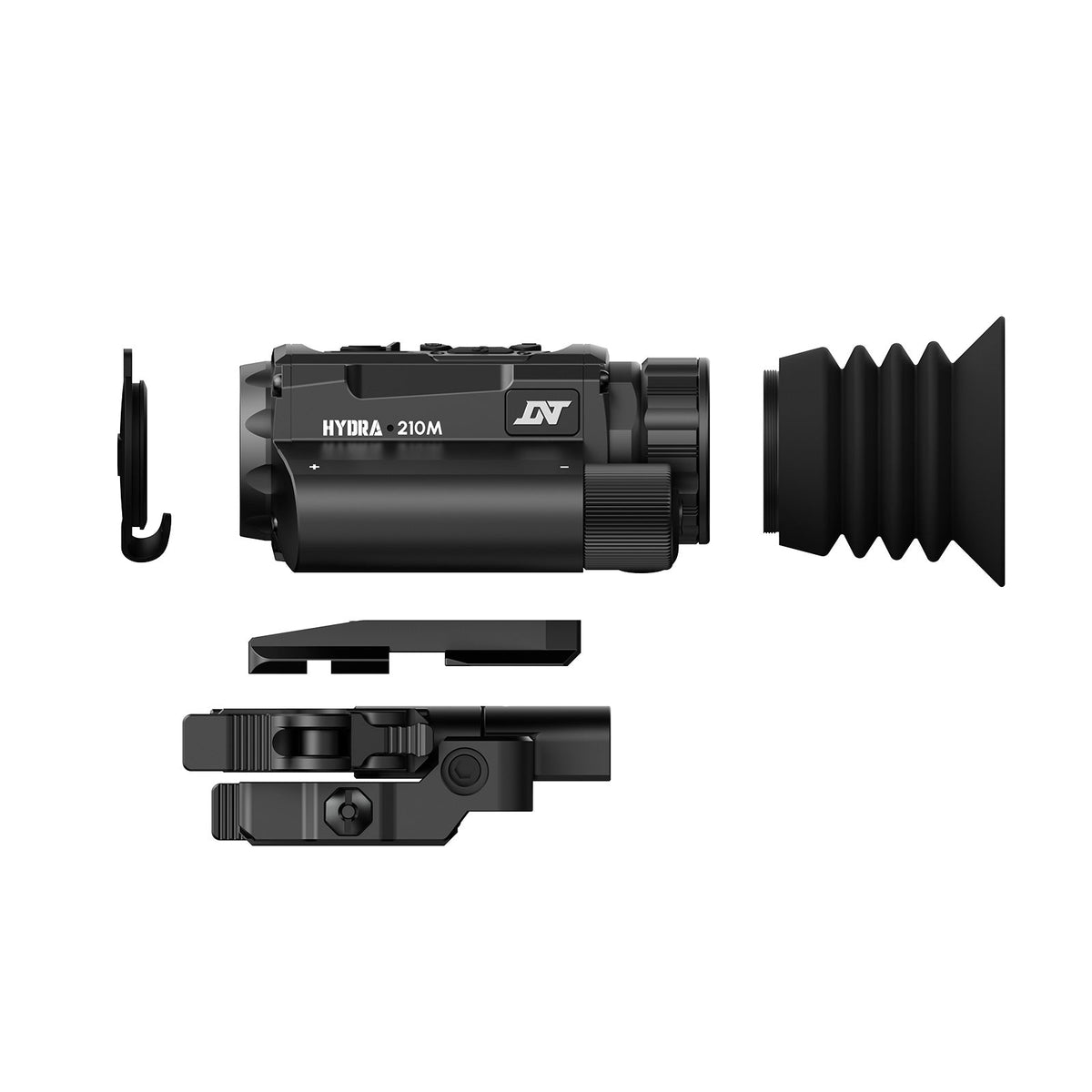

• In Box: HS210M scope, QDF193 mount, objective lens cover, threaded eye cup, drawstring bag, tethered wrist strap, USB-C data cable, carrying pouch, battery pack, lens cleaning cloth, user manual, quick start guide
