DNT THERMNIGHT TNC225R

DNT THERMNIGHT TNC225R

Regular price £999.00 GBP
Regular price Sale price £999.00 GBP
Sale Sold out
Base
Payment

DNT THERMNIGHT TNC225R

Enter DNT50 at checkout for £50 off.

Free Shipping Expected 5TH - 8TH SEPTEMBER

2-Year Warranty

Featuring state-of-the-art thermal sensors for detecting targets and advanced high-definition digital night vision for identifying them, the TNC225R excels in delivering superior operational effectiveness in various environments and conditions.

ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.

OVERVIEW



  • Thermal/Night Vision Combination
  • Day & Night in All Conditions
  • LRF Ballistic Calculator
  • Thermal Magnification: 3x-12x
  • Night Vision Magnification: 5x-20x

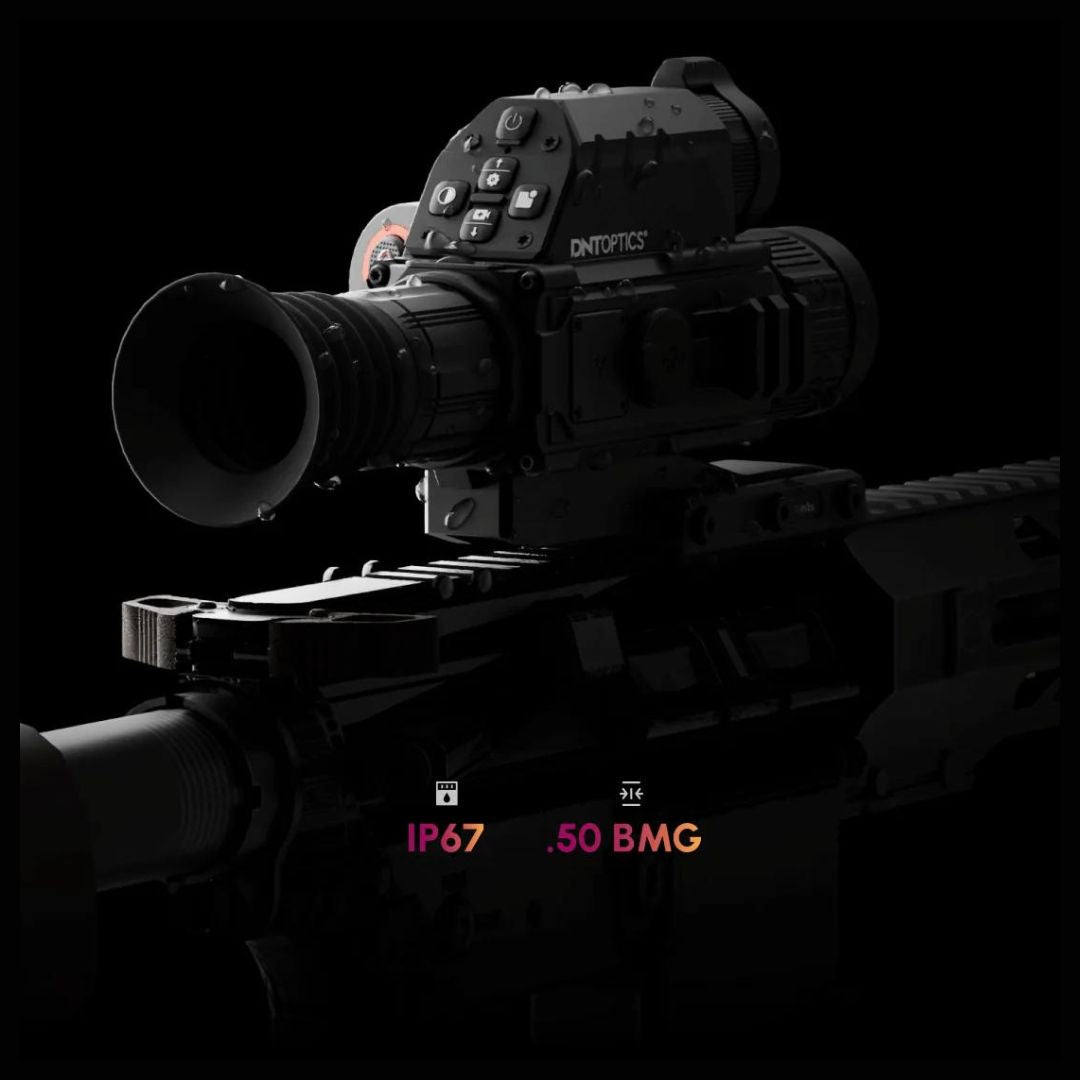

  • IP67 Waterproof Rating
  • .50 BMG Recoil Rating
  • Built in 32Gb Storage
  • Detachable Eye Cup Designed With Metal Threads
  • Digital Zoom Wheel
  • Digital Gyroscope For Accurate Inclination And Cant Angle
  • Up to 5 hour Battery Life
  • Aiming Methods: Dial-In Or Holdover

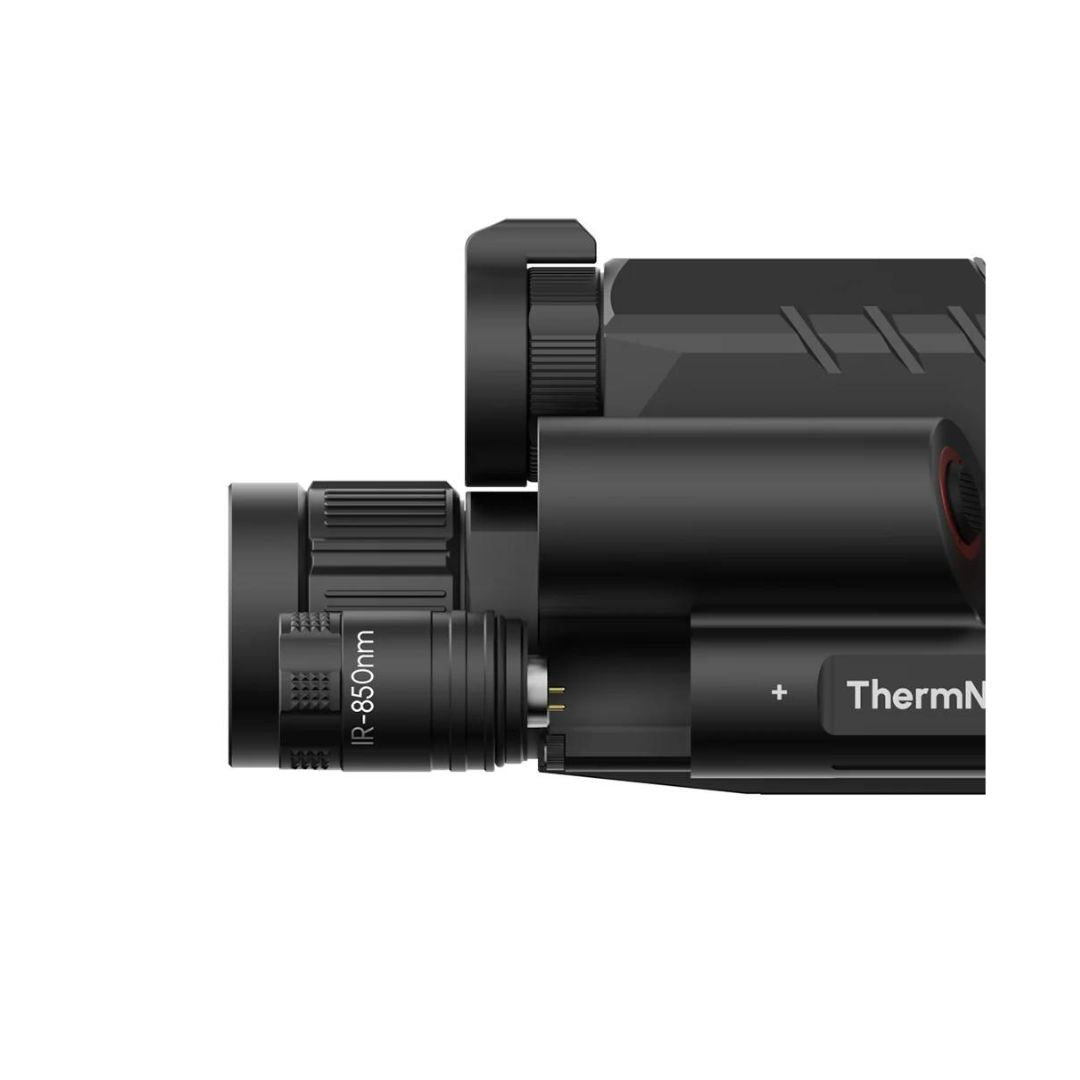

  • Detachable IR Illuminator; The removable IR Illuminator allows you to switch between 850nm or 940nm



TNC225R SPECIFICATIONS



Physical Specifications

Net Weight 22.8oz / 646g
Dimensions 6.7*3.3*3.1 Inches
Storage Internal Storage, 32GB
LRF Maximum Measuring Range 5-1100yards
WIFI/APP Yes
Bluetooth Yes
Ingress Protection IP67
Operating Temperature -20C to 50C
Shock Resistance 800Gs


Display Specifications

Type Micro OLED
Display Resolution 1024*768 pixels
Frame Rate 50FPS


Battery Power Supply

Battery Type 18650 Battery(flat top)
Operating Time 5 Hours
External Power Supply 5V - Type C USB


THERMAL CHANNEL - Sensor Specifications

Resolution 256x192px
Image Sensor Uncooled Infrared Image Sensor
Frame Rate 50FPS
Pixel Size 12x12um
NETD ≤25mk@25℃
Focal Length of Objective Lens 25mm
Base Magnification 3X
Digital Zoom 3X,6X,9X,12X


VISIBLE LIGHT CHANNEL - Sensor Specifications

Resolution 1920*1080 pixels
Sensor Frame Rate 60FPS
Video Record Resolution 1024*768 pixels


VISIBLE LIGHT CHANNEL - Optical Specifications

Objective Lens Focal Length 52mm
Base Magnification 5X
Digital Zoom 5X,7.5X,10X,12X,15X,17.5X,20X
Eye-Relief 1.8 Inch / 4.57cm
Diopter Adjustment ±5D
IR Wavelength 850/940nm
Infrared Power Class 3R Eye Safe
