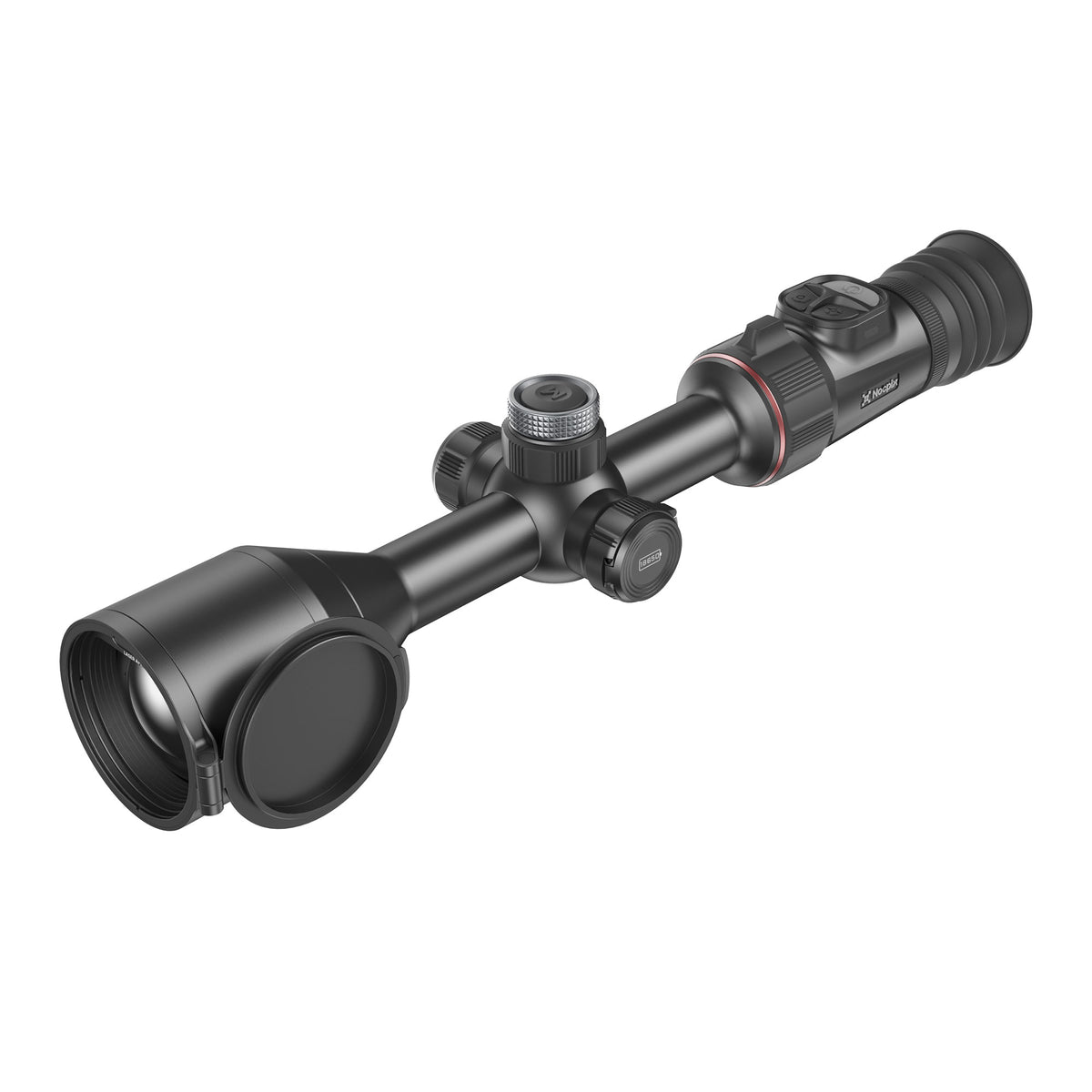

NOCPIX Ace 2 H50R Thermal Riflescope

The NOCPIX Ace 2 H50R is a thermal riflescope with a 640 × 512 12μm sensor, a 50mm F0.9 lens and 3–24x magnification. It has an integrated laser rangefinder and ballistic calculation, and the eyepiece uses Nocpix's Ocular Zoom 2.0.

Key Features

• Ocular Zoom 2.0 – hybrid optical and digital zoom, with 60mm eye relief and a 10mm exit pupil
• Gen 3 Sensor – 12μm pixels with NETD ≤12mK
• Integrated LRF 2.0 – laser rangefinder to 1,200m built into the scope
• Ballistic Calculation 2.0 – works out the aiming point from distance, angle and wind drift
• Dual Clarity Mode – Motion mode for moving targets, Still mode for fine detail
• Central Focus System – centrally placed focus wheel, so you can adjust while staying on target
• Magnesium Alloy Body – 920g with battery
• R+ 2.0 Imaging – Reality+ image processing for cleaner, more detailed thermal images
• Target Tracking – laser ranging and an electronic compass give target coordinates from a single measurement
• Recording and Connectivity – photo and video to 64GB of built-in memory, recoil-activated video, Wi-Fi and app connection
• Power – built-in battery plus a replaceable 18650, up to 8 hours

Specification

• Brand: NOCPIX
• Model: Ace 2 H50R
• SKU: NPRIF-ACE-2-H50R
• Thermal Sensor: 640 × 512, 12μm
• NETD: ≤12mK
• Frame Rate: 60Hz
• Objective Lens: 50mm, F0.9
• Magnification: 3–24x
• Field of View: 8.8° × 7.0° (15.4m × 12.3m at 100m)
• Detection Range: up to 2,600m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 1.03 inch AMOLED, 2560 × 2560
• Eye Relief: 60mm
• Laser Rangefinder: up to 1,200m
• Battery: built-in battery plus replaceable 18650 battery
• Battery Life: up to 8 hours at 22°C
• Storage: 64GB
• Weight: 920g
• Dimensions: 383 × 70 × 92mm
• In Box: ACE 2 Series Thermal Imaging Scope; Heated target for zeroing; Lens cloth; 2 x 18650 battery; Type-C cable; Quick start guide; Battery charger; Portable bag
