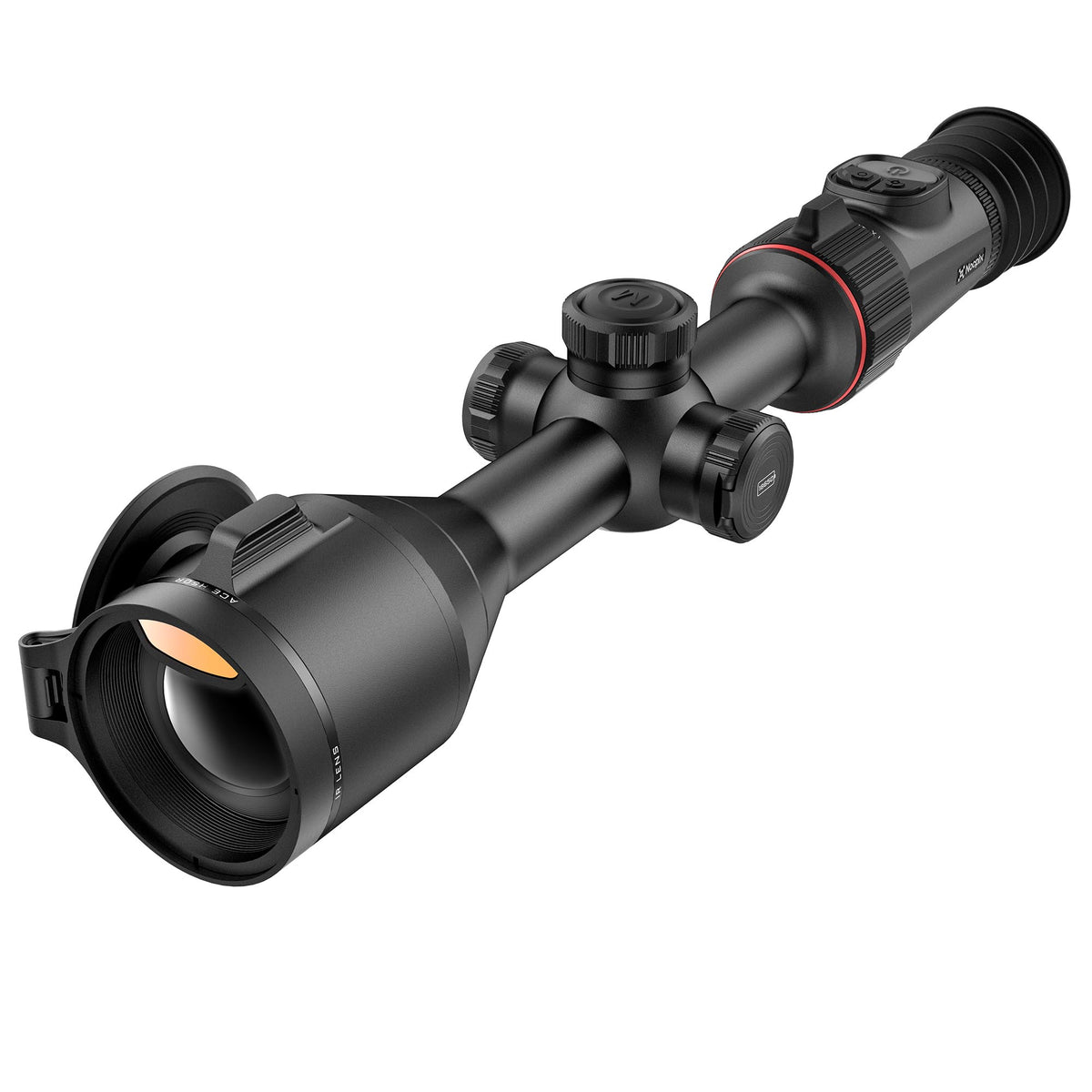

NOCPIX Ace H50R Thermal Riflescope

The NOCPIX Ace H50R is a thermal riflescope with a 640 × 512 12μm sensor, a 50mm F0.9 lens and 3–24x magnification. It has an integrated laser rangefinder to 1,200m. The Vision+ display is a round AMOLED with ocular zoom.

Key Features

• Vision+ Display – 1.03 inch round AMOLED display with 1–3x ocular zoom for direct optical magnification
• Reality+ Imaging – image processing that reduces environmental temperature noise and brings out contrast and detail
• Integrated LRF – laser rangefinder to 1,200m with true optical axis alignment
• Ballistic Calculation – built into the scope
• Dual Battery System – built-in 4000mAh battery plus a replaceable 18650, up to 7 hours
• Recording and Connectivity – photo and video to 64GB of built-in memory, recoil-activated video, gallery playback, Wi-Fi and app connection
• Built for Hunting – built-in compass and motion sensor, picture-in-picture, auto screen shutdown and shutterless design
• Aluminium Alloy Body – IP67 rated

Specification

• Brand: NOCPIX
• Model: Ace H50R
• SKU: NPRIF-ACE-H50R
• Thermal Sensor: 640 × 512, 12μm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Objective Lens: 50mm, F0.9
• Magnification: 3–24x
• Field of View: 8.8° × 7.0° (15.4m × 12.3m at 100m)
• Detection Range: up to 2,600m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 1.03 inch AMOLED, 2560 × 2560
• Eye Relief: 50mm
• Laser Rangefinder: up to 1,200m
• Battery: built-in 4000mAh battery plus replaceable 18650 battery
• Battery Life: up to 7 hours at 22°C
• Storage: 64GB
• Weight: 1,120g with battery
• Dimensions: 365 × 90 × 68mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: ACE Series Thermal Imaging Scope; Heated target for zeroing; Lens cloth; 2 x 18650 battery; Type-C cable; Quick start guide; Battery charger; Portable bag
