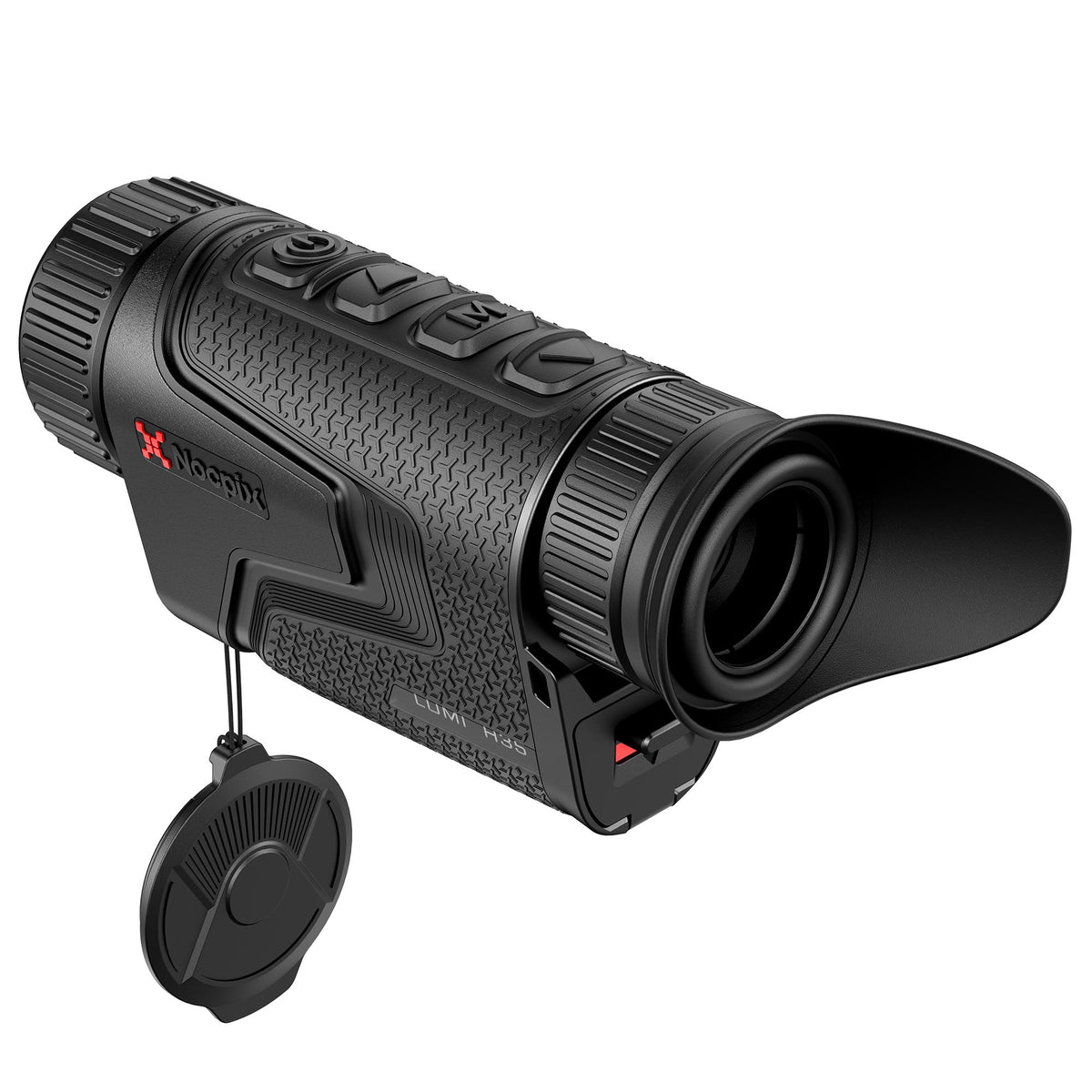

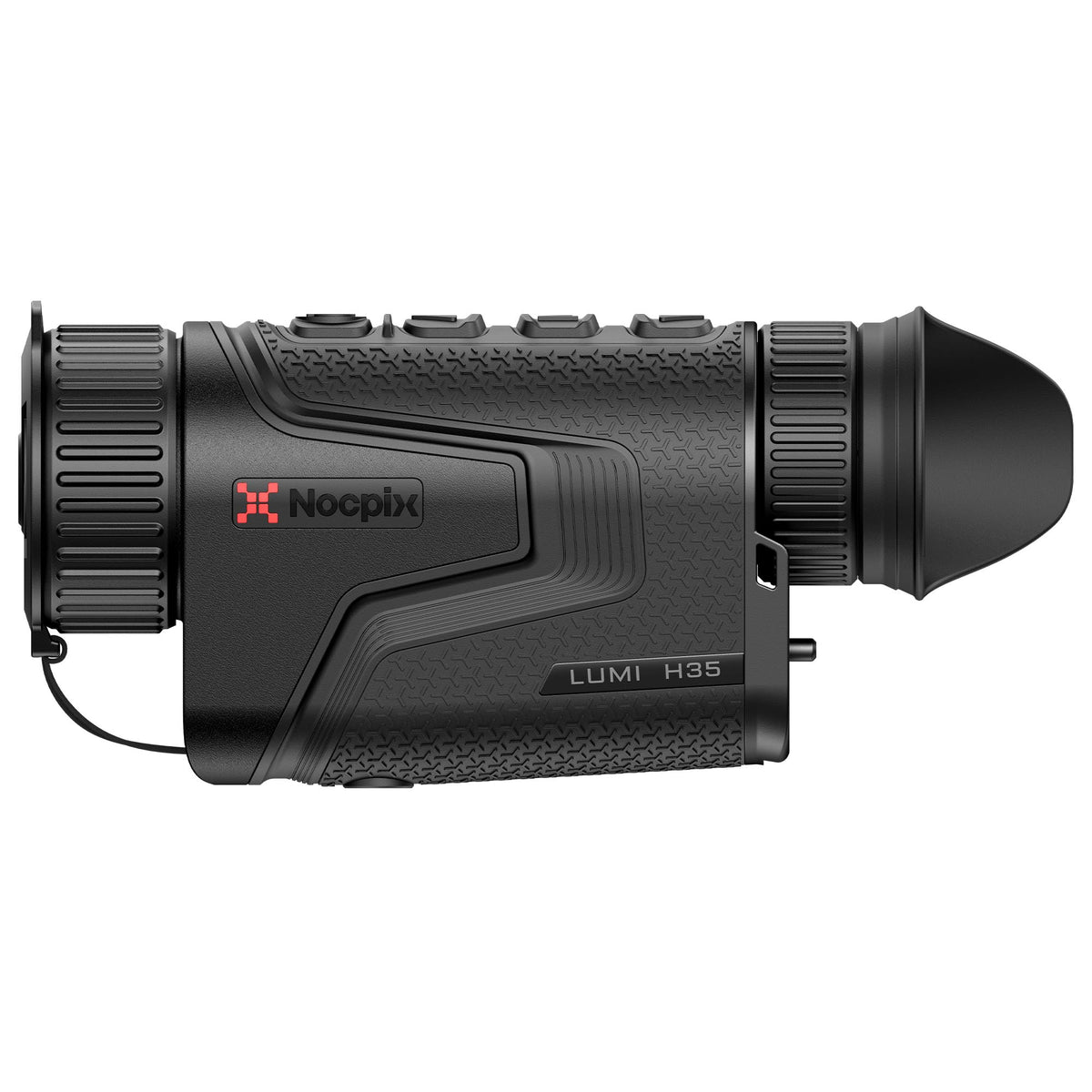

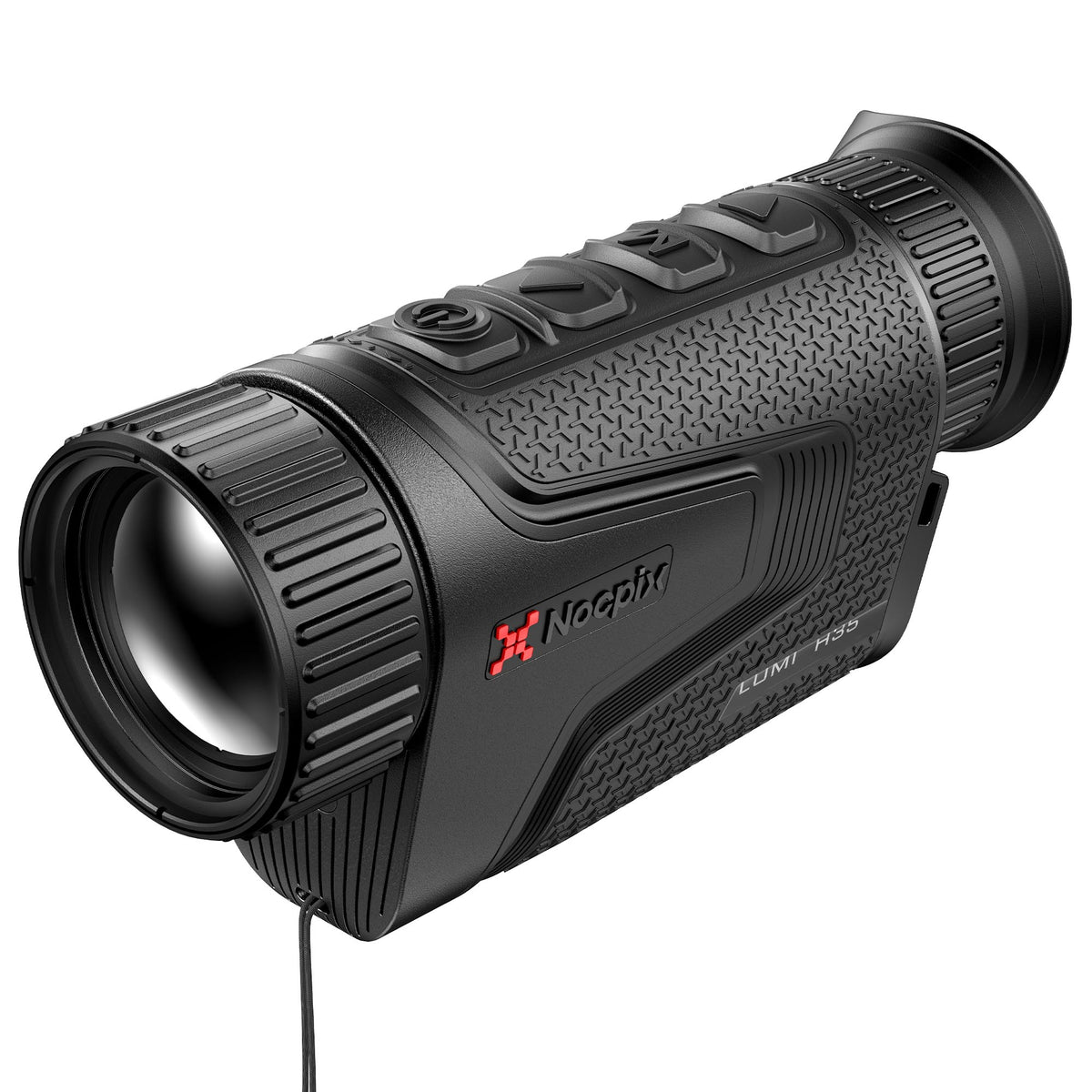

NOCPIX Lumi H35 Thermal Monocular

The NOCPIX Lumi H35 is a compact handheld thermal monocular with a 640 × 512 12μm sensor and a 35mm F0.9 lens. It runs on a replaceable 18650 battery.

Key Features

• Compact and Light – 345g with battery
• Sensor – 640 × 512 12μm with a 35mm F0.9 lens and 50Hz refresh
• Display – 0.39 inch AMOLED, 1024 × 768
• Image Modes – Ultra Clear mode, electronic image stabilisation and smooth digital zoom
• Eye-Friendly Display – low brightness, colour palette and warm hue options
• Replaceable Battery – 18650 battery, up to 4.5 hours; two batteries and a charger supplied
• Built for the Field – IP67 rated, 32GB of storage and a microphone

Specification

• Brand: NOCPIX
• Model: Lumi H35
• SKU: NPMON-LUMI-H35
• Thermal Sensor: 640 × 512, 12μm
• NETD: ≤18mK
• Frame Rate: 50Hz
• Objective Lens: 35mm, F0.9
• Magnification: 2.5–20x
• Field of View: 12.5° × 9.4° (22m × 16m at 100m)
• Detection Range: up to 1,800m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 0.39 inch AMOLED, 1024 × 768
• Eye Relief: 25mm
• Battery: replaceable 18650 battery
• Battery Life: up to 4.5 hours at 22°C
• Storage: 32GB
• Weight: 345g with battery
• Dimensions: 143 × 47 × 74mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: LUMI series Thermal Imaging Monocular; Portable bag; 2 x 18650 battery; 18650 battery charger; Data cable; Neck Strap; Lens cleaning cloth; Quick start guide
