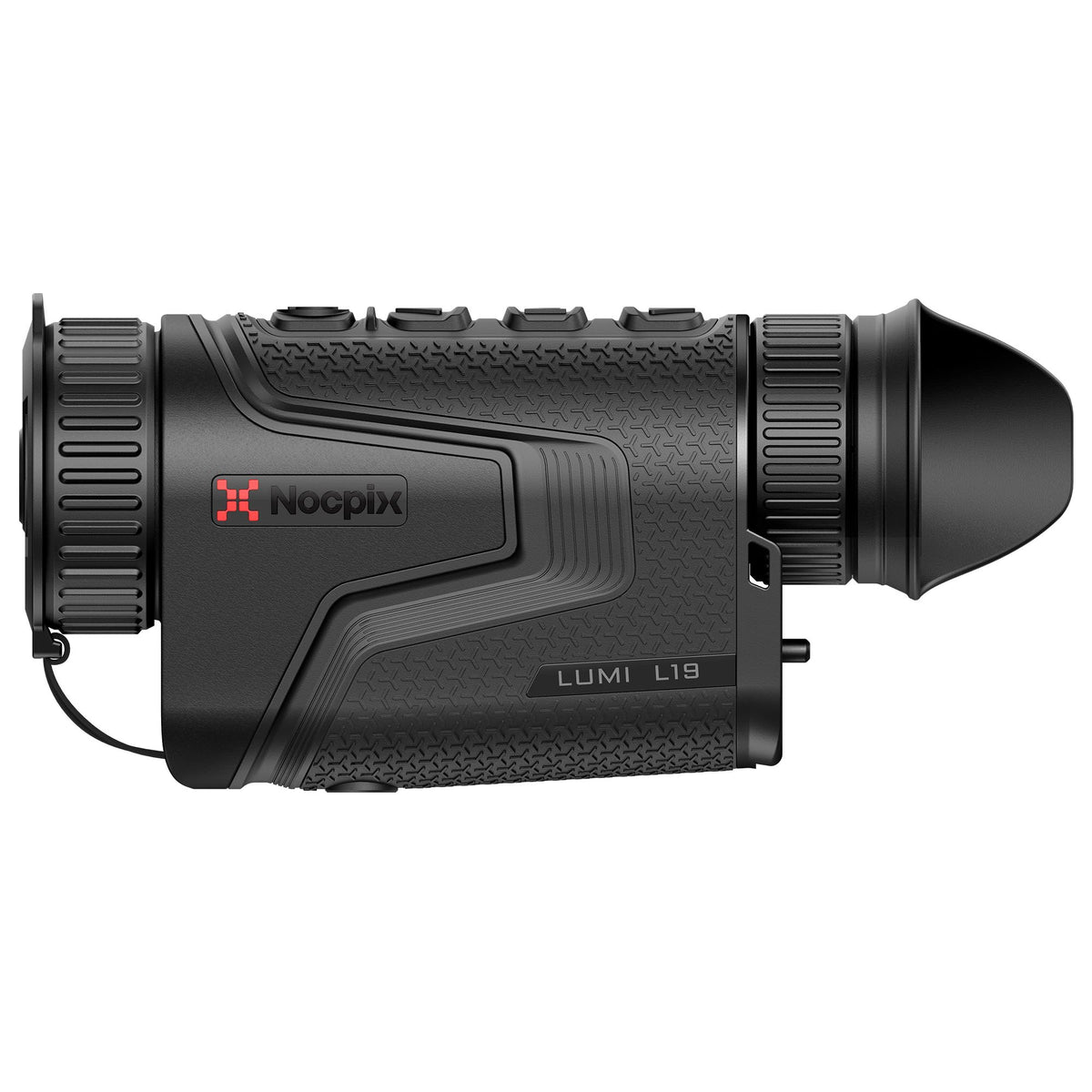

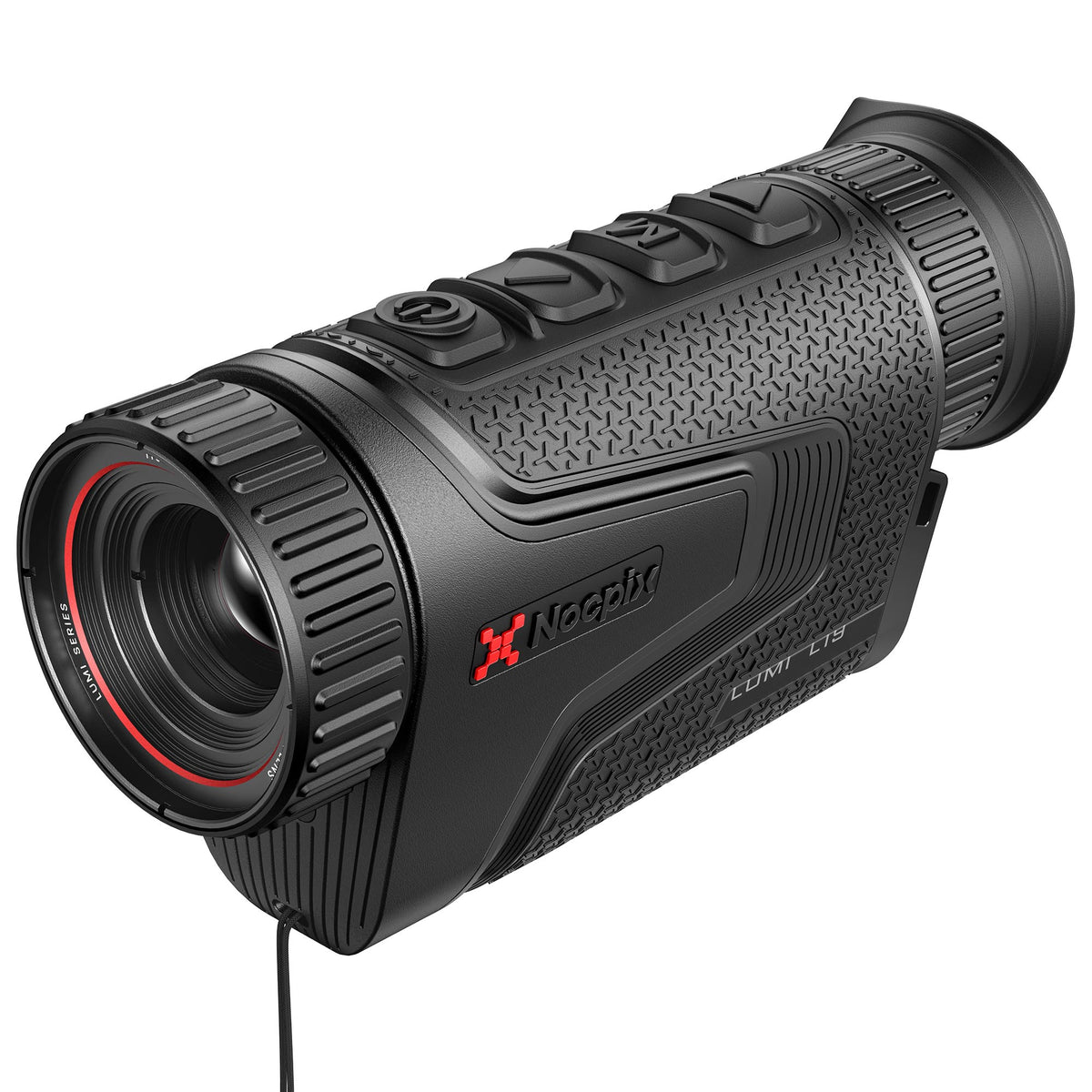

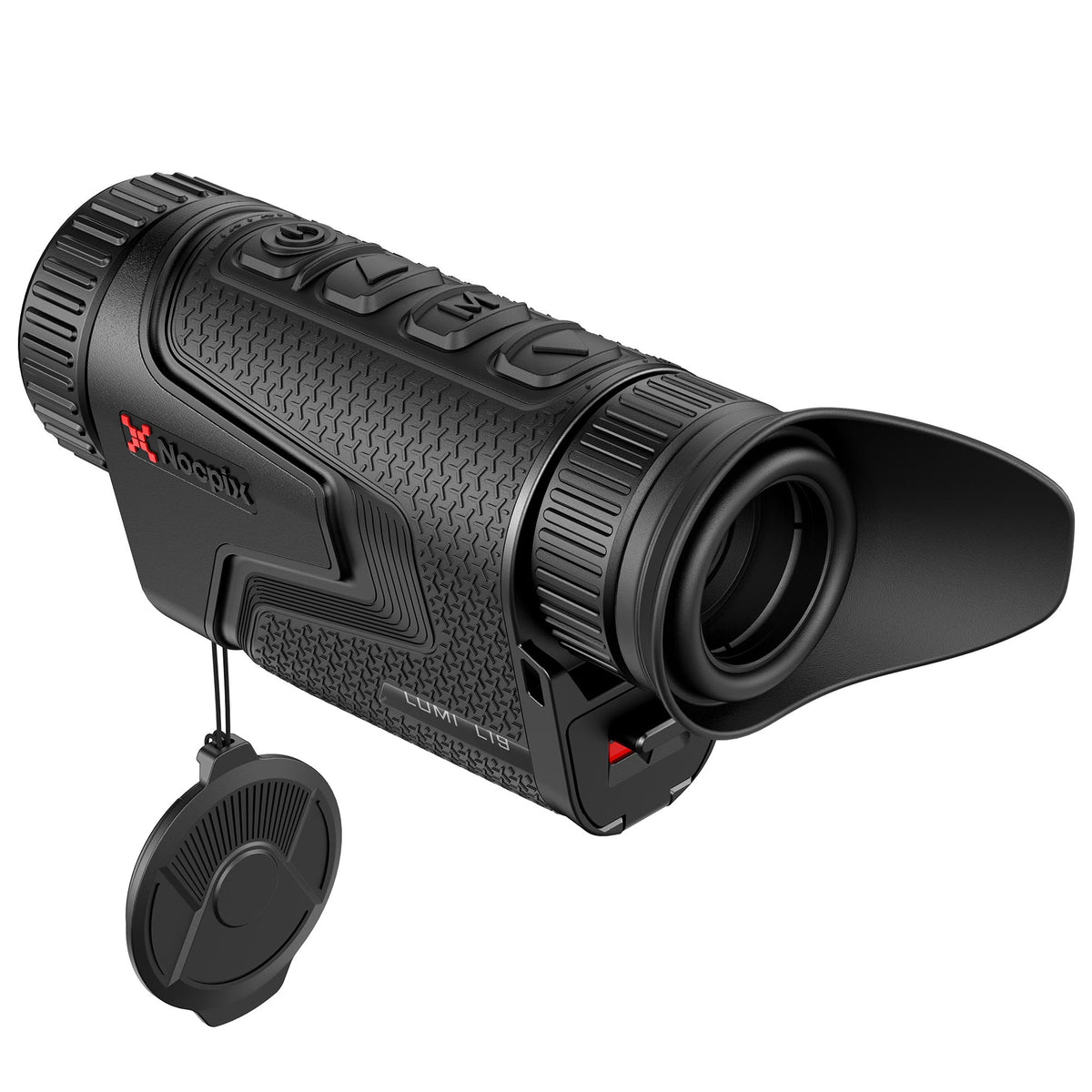

NOCPIX Lumi L19 Thermal Monocular

The NOCPIX Lumi L19 is a compact handheld thermal monocular with a 384 × 288 12μm sensor and a 19mm F0.9 lens. It runs on a replaceable 18650 battery.

Key Features

• Compact and Light – 335g with battery
• Sensor – 384 × 288 12μm with a 19mm F0.9 lens and 50Hz refresh
• Display – 0.39 inch AMOLED, 1024 × 768
• Image Modes – Ultra Clear mode, electronic image stabilisation and smooth digital zoom
• Eye-Friendly Display – low brightness, colour palette and warm hue options
• Replaceable Battery – 18650 battery, up to 4.5 hours; two batteries and a charger supplied
• Built for the Field – IP67 rated, 32GB of storage and a microphone

Specification

• Brand: NOCPIX
• Model: Lumi L19
• SKU: NPMON-LUMI-L19
• Thermal Sensor: 384 × 288, 12μm
• NETD: ≤18mK
• Frame Rate: 50Hz
• Objective Lens: 19mm, F0.9
• Magnification: 2–8x
• Field of View: 13.8° × 10.4° (24m × 18m at 100m)
• Detection Range: up to 980m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 0.39 inch AMOLED, 1024 × 768
• Eye Relief: 25mm
• Battery: replaceable 18650 battery
• Battery Life: up to 4.5 hours at 22°C
• Storage: 32GB
• Weight: 335g with battery
• Dimensions: 139 × 47 × 74mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: LUMI series Thermal Imaging Monocular; Portable bag; 2 x 18650 battery; 18650 battery charger; Data cable; Neck Strap; Lens cleaning cloth; Quick start guide
