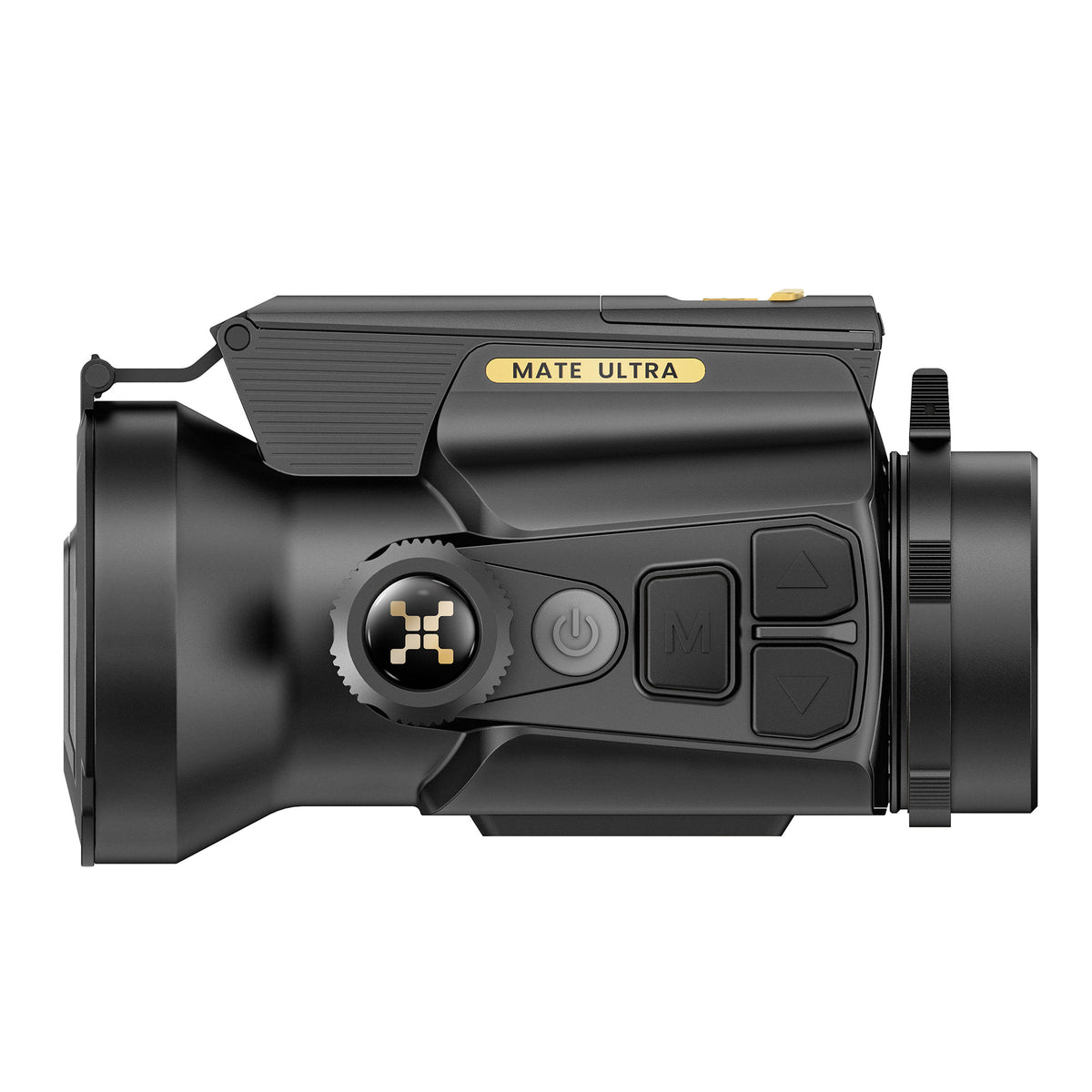

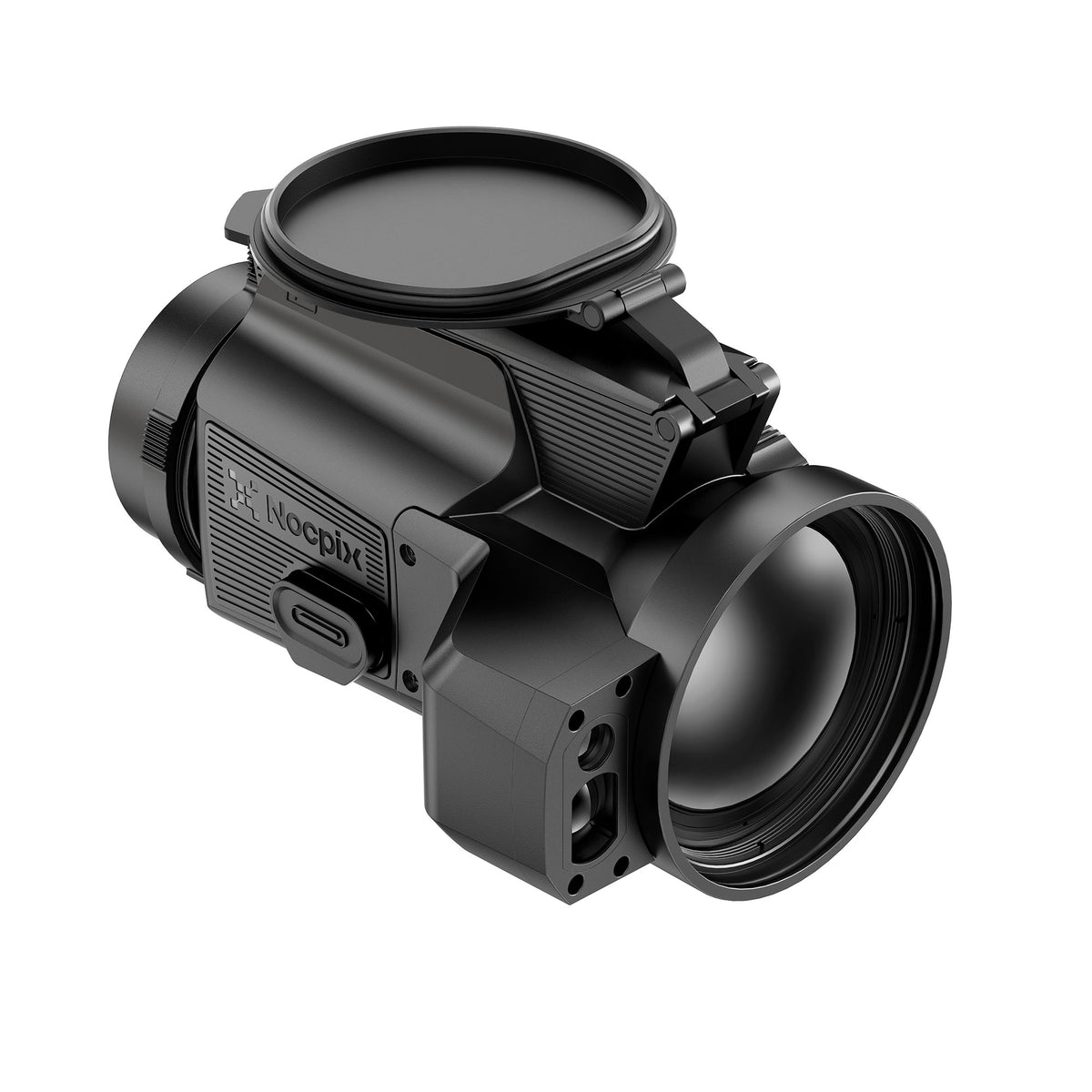

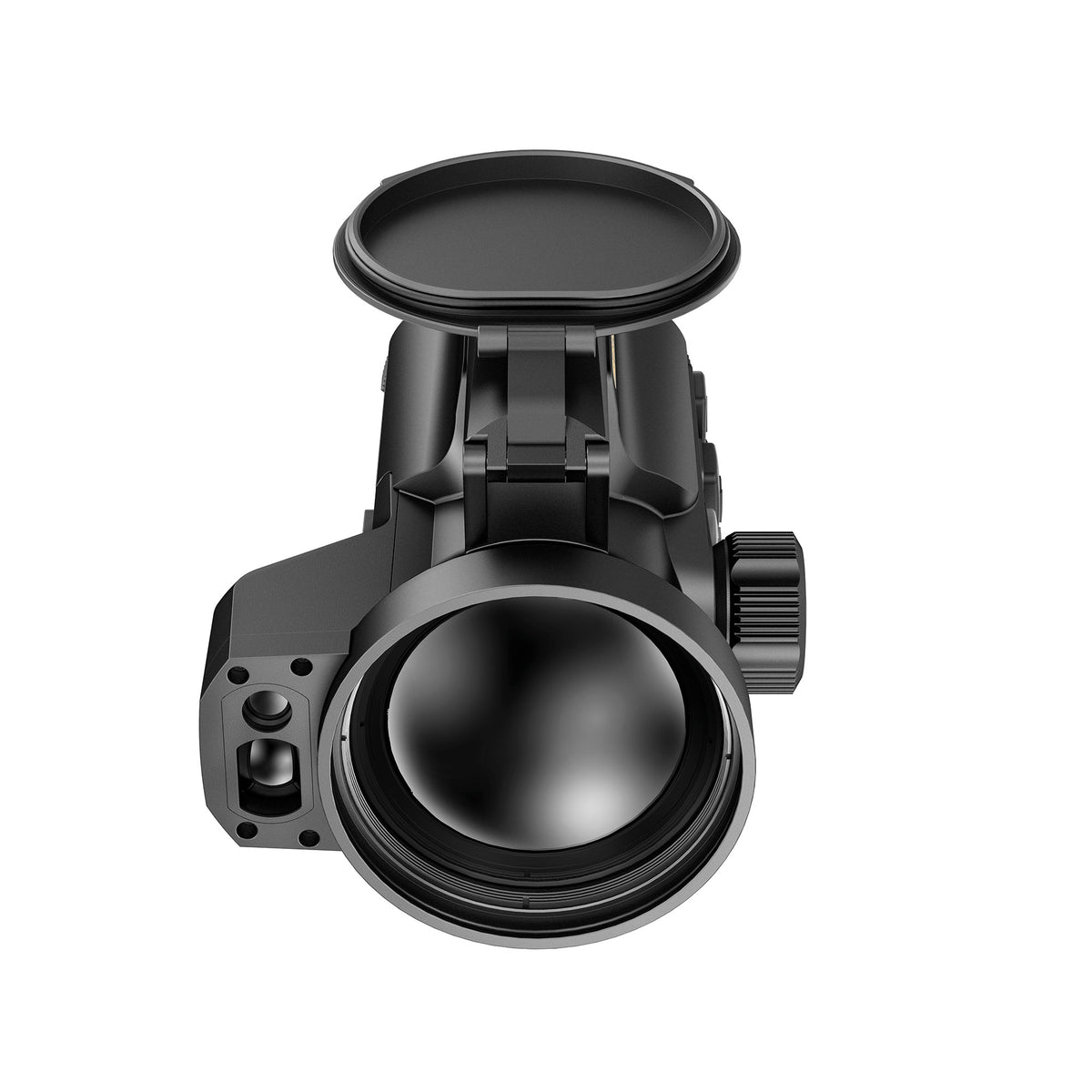

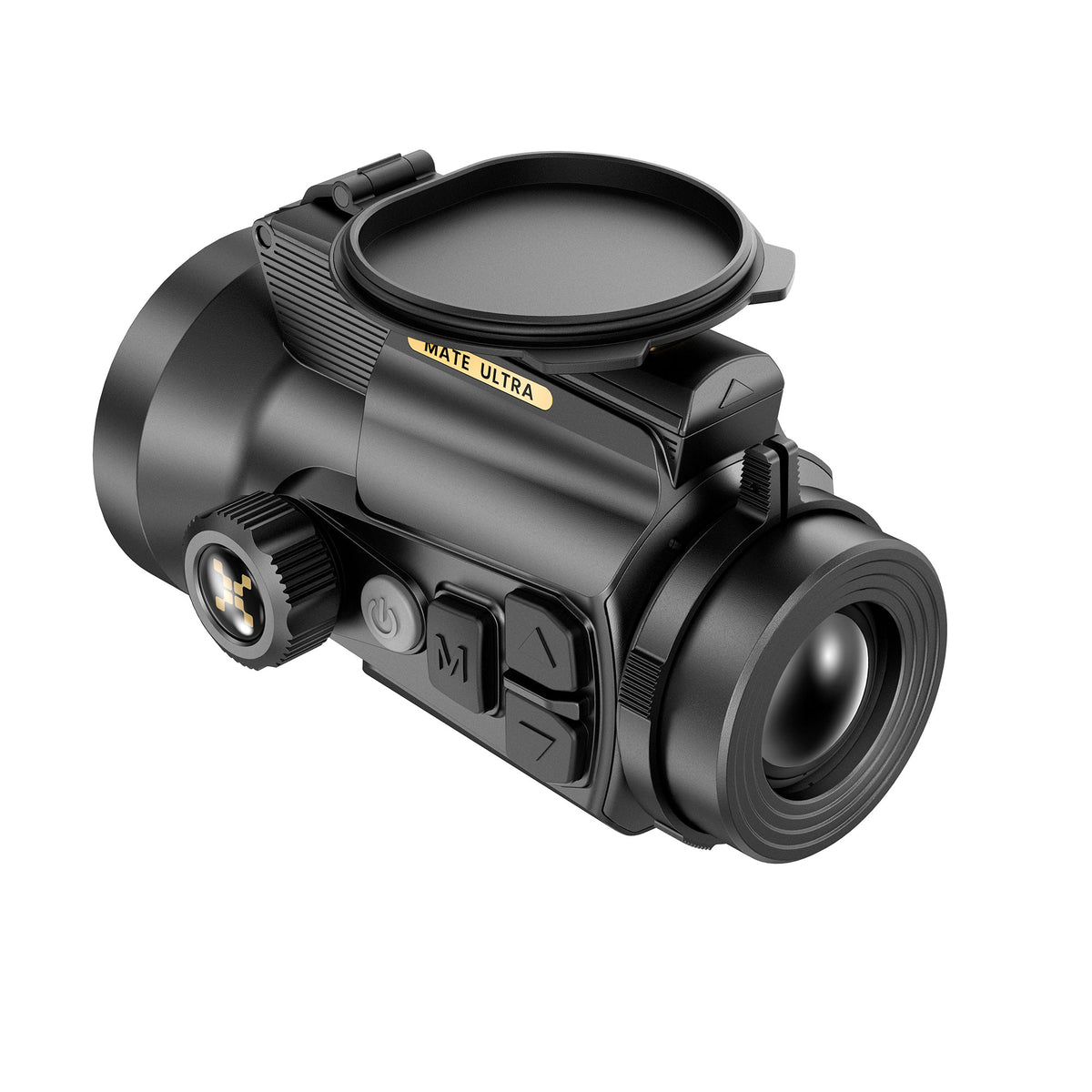

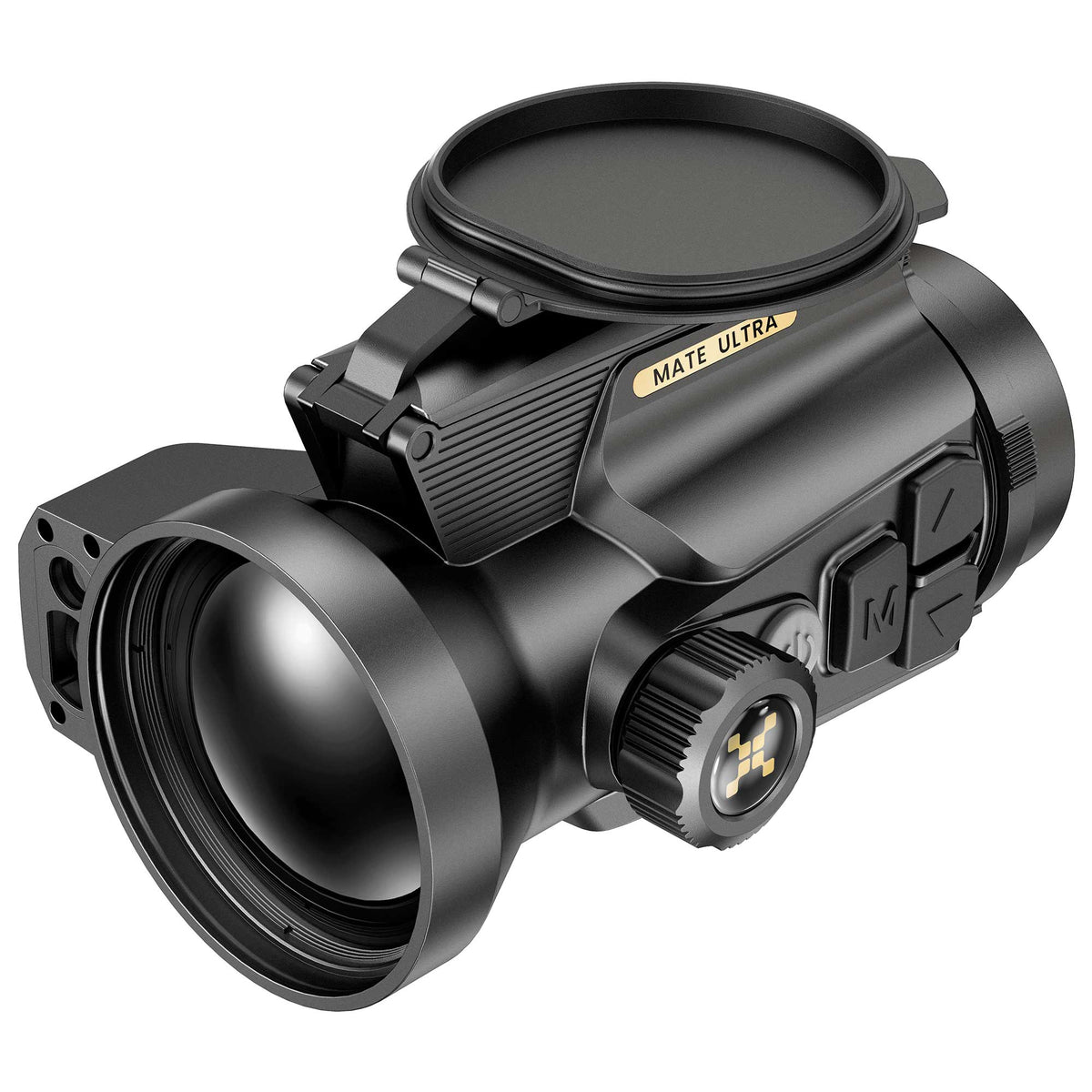

NOCPIX Mate Ultra S60R Thermal Clip-On

The NOCPIX Mate Ultra S60R is a thermal clip-on attachment that fits in front of a day scope. It has a 1280 × 1024 12μm sensor, a 60mm F1.0 lens and an integrated laser rangefinder to 1,200m.

Key Features

• Clip-On Design – fits in front of your day scope, with an M52 adapter interface
• Magic Zoom – supplied accessory that adjusts the thermal image and interface as you change your day scope's magnification
• Shutterless Imaging – no shutter pauses and no manual calibration
• Integrated LRF – laser rangefinder to 1,200m with ballistic calculation
• 18650 Batteries – 4 supplied with a charger, up to 4 hours
• Recording and Connectivity – recoil-activated video, gallery playback, Wi-Fi and app connection, N-Link and remote control
• Built for the Field – IP67 rated, 64GB of storage

Specification

• Brand: NOCPIX
• Model: Mate Ultra S60R
• SKU: NPCLIP-MATE-S60R
• Thermal Sensor: 1280 × 1024, 12μm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Objective Lens: 60mm, F1.0
• Field of View: 14.7° × 11.7°
• Detection Range: up to 3,100m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 0.72 inch AMOLED, 1920 × 1200
• Laser Rangefinder: up to 1,200m
• Battery: replaceable 18650 batteries
• Battery Life: up to 4 hours at 22°C
• Storage: 64GB
• Weight: 560g with battery
• Dimensions: 140 × 96 × 78mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: MATE Series Thermal Imaging Attachment; Remote Control Accessories; Magic Zoom; 4 x 18650 battery; Battery charger; Type-C cable; Heated target for zeroing x10; Lens cloth; Quick start guide; Portable bag
