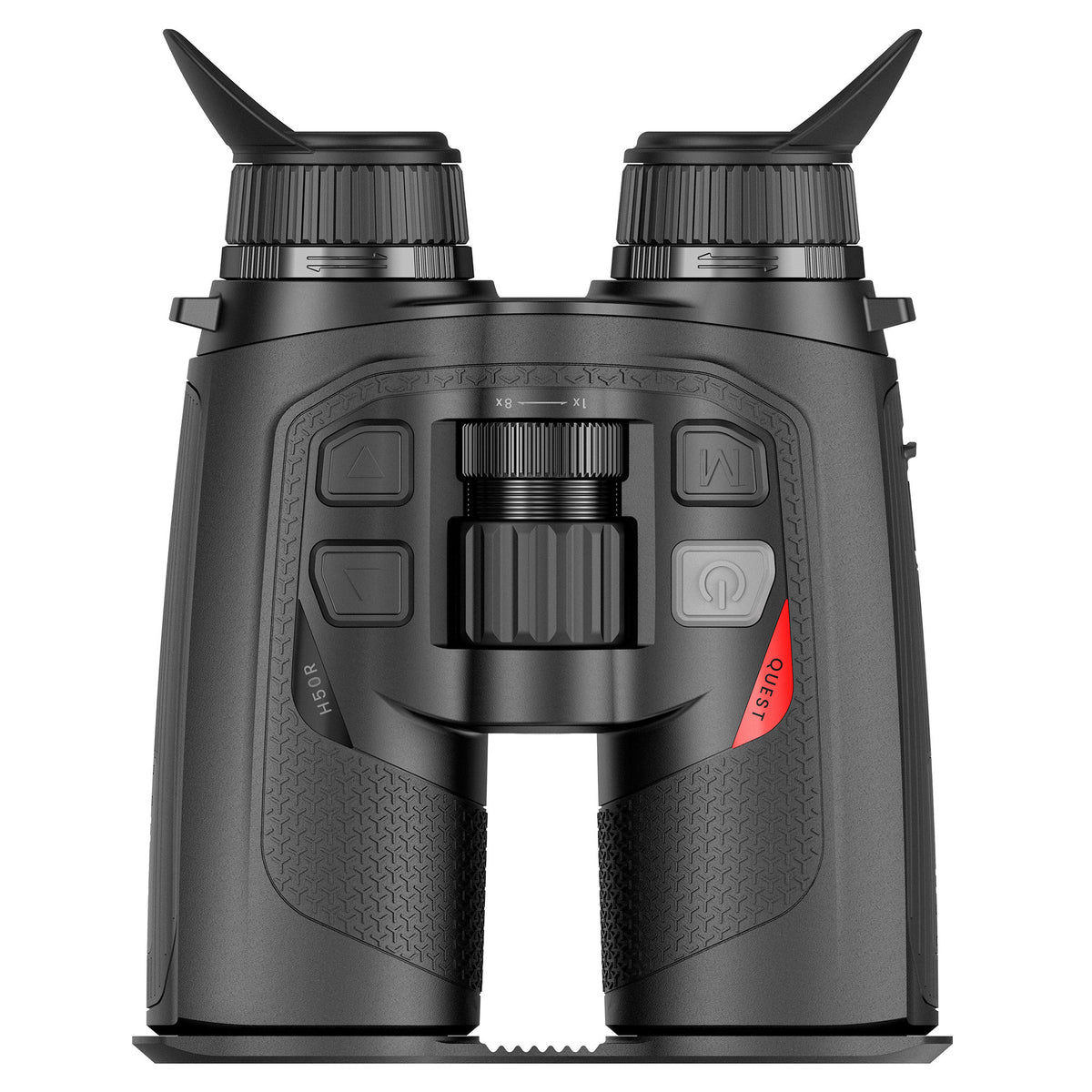

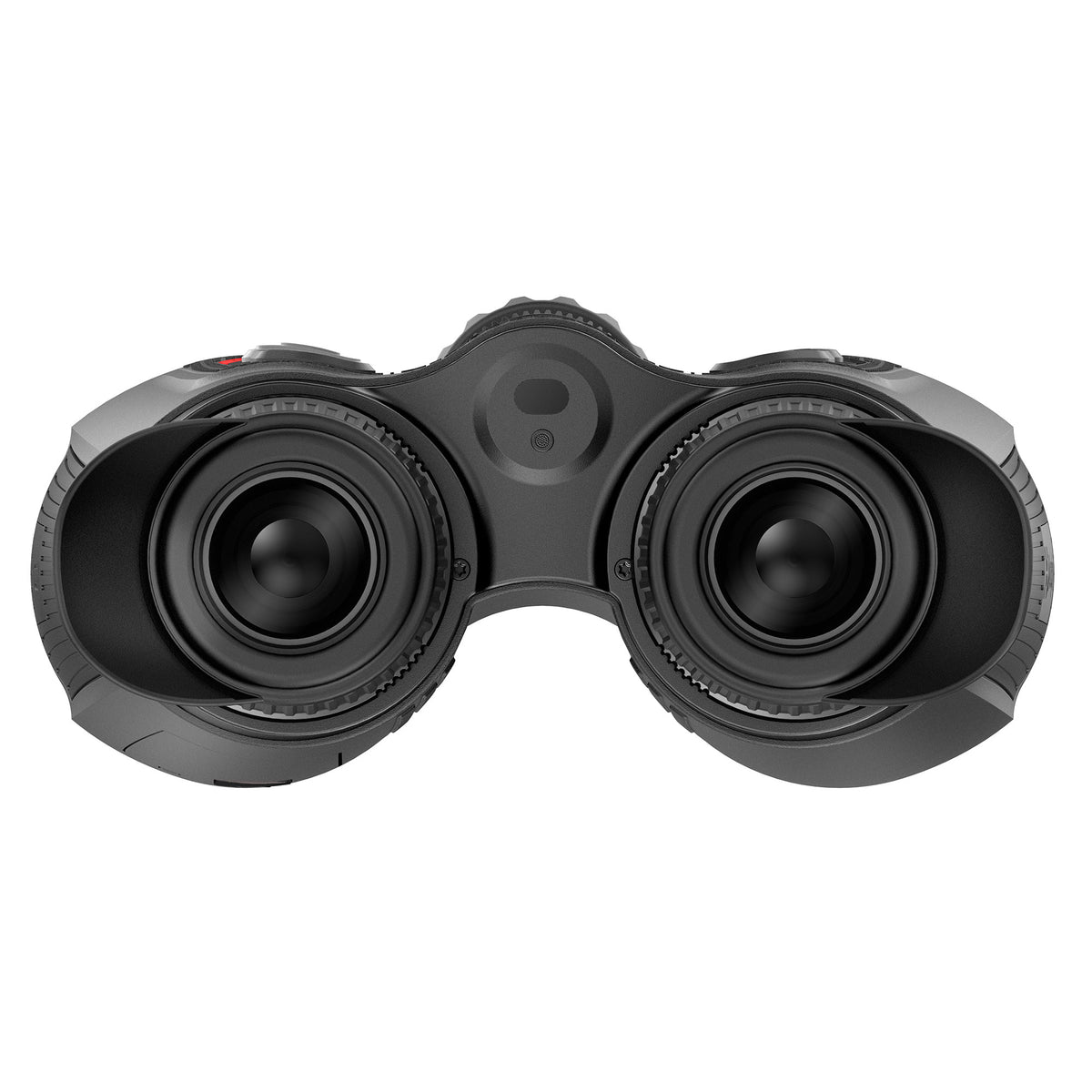

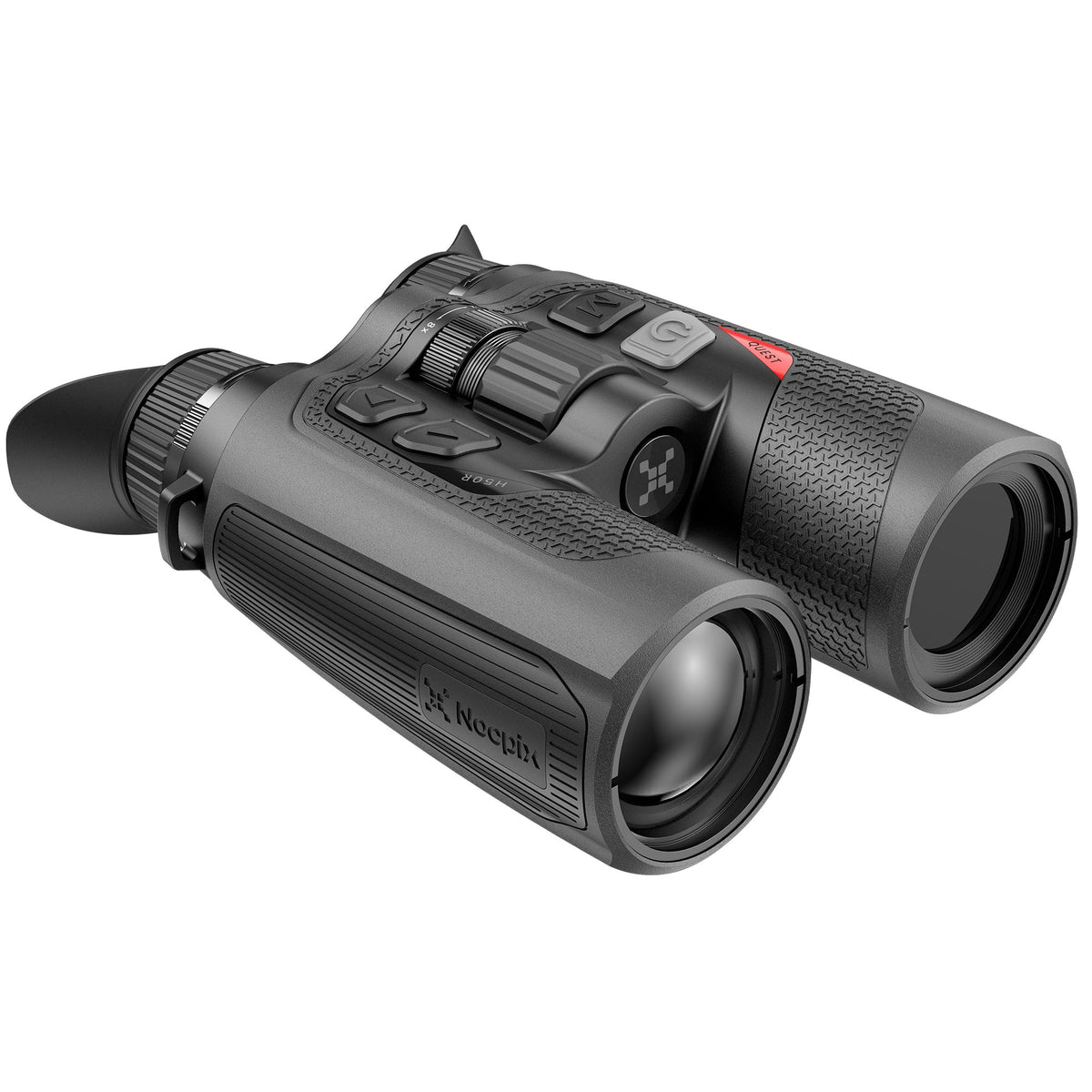

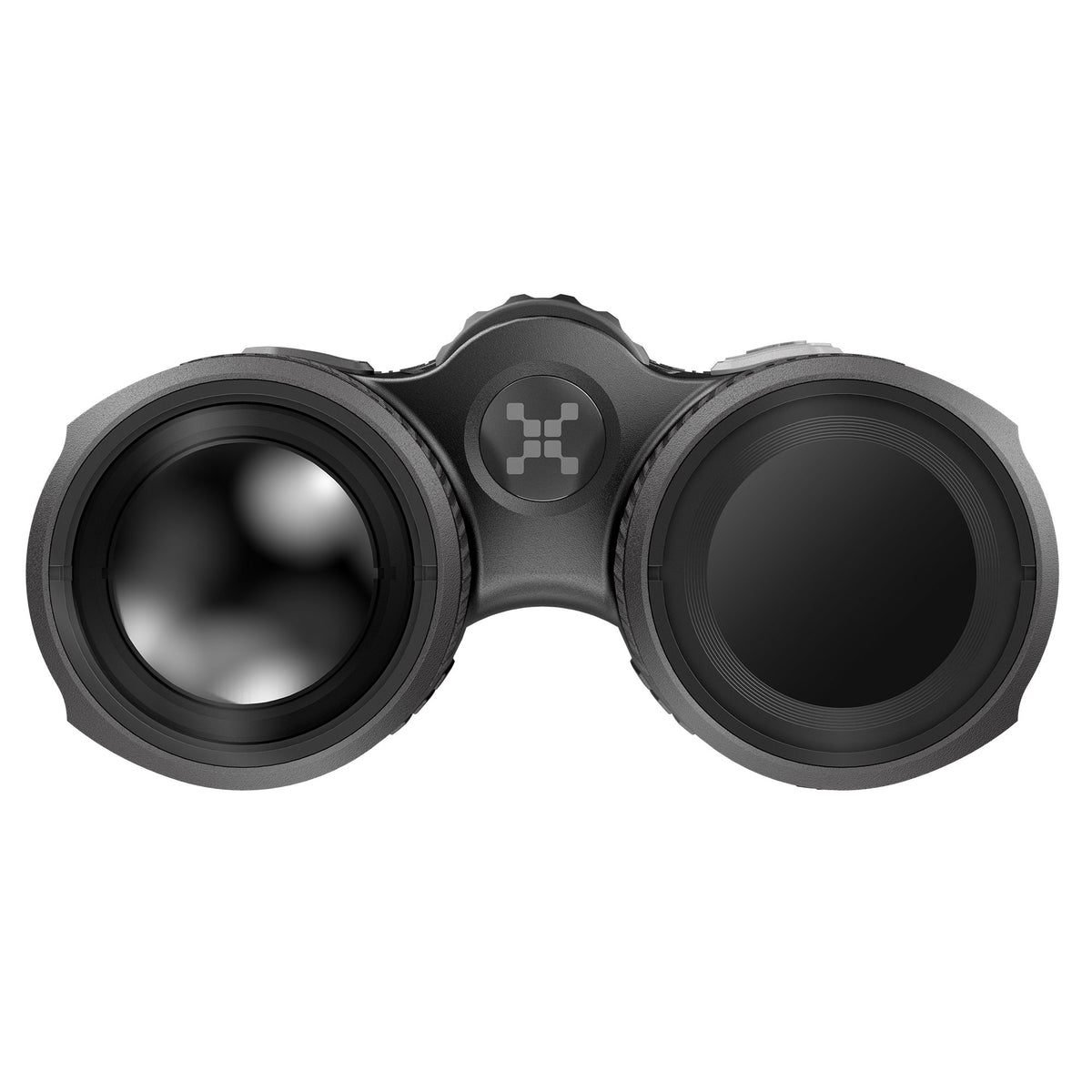

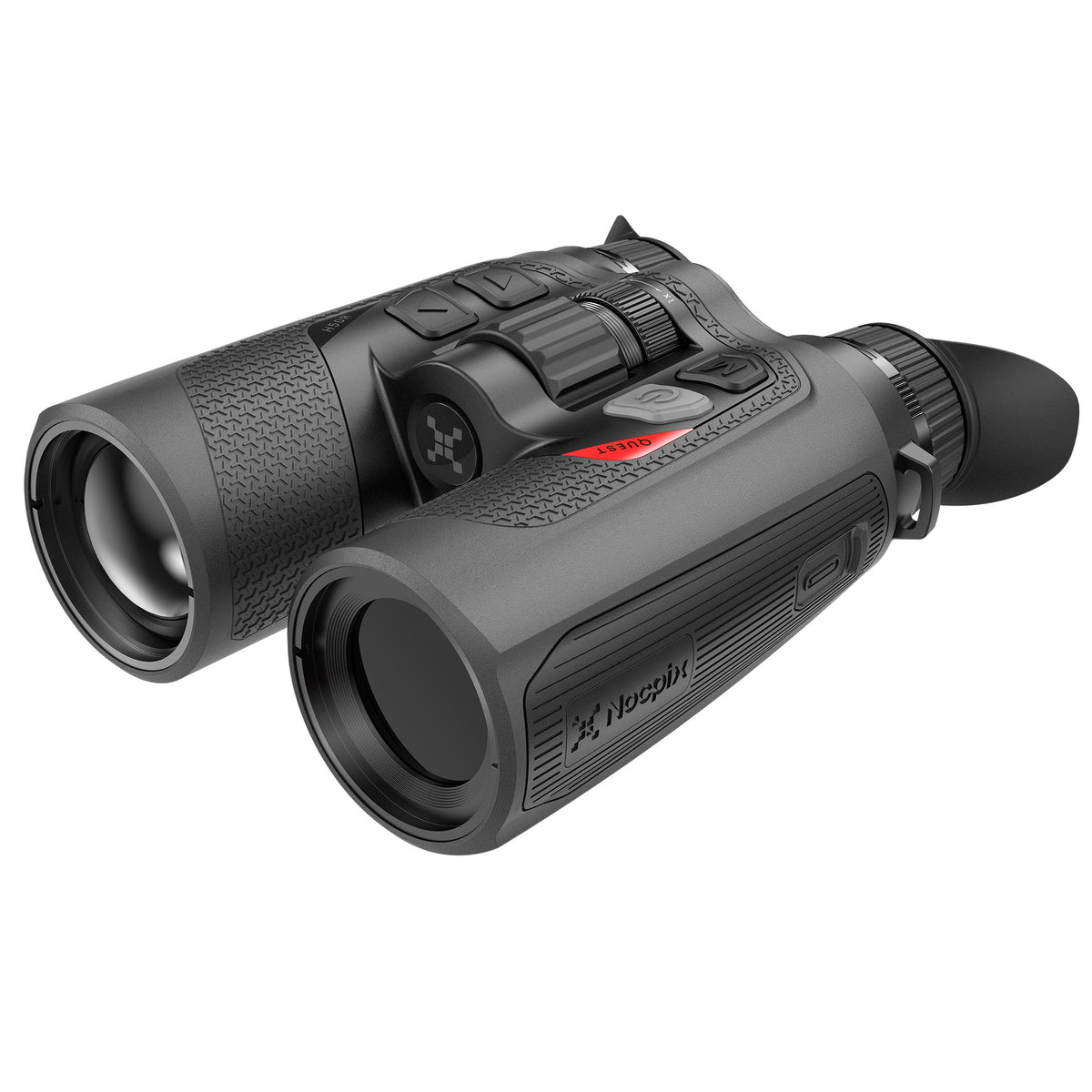

NOCPIX Quest H50R Thermal Binocular

The NOCPIX Quest H50R is a thermal binocular with a 640 × 512 12μm sensor, 50mm F1.1 lenses and an integrated laser rangefinder to 1,000m.

Key Features

• Thermal Binocular – two-eyed viewing with a 640 × 512 12μm sensor, NETD ≤15mK and 60Hz refresh
• Integrated LRF – laser rangefinder to 1,000m
• Display – 0.72 inch 1920 × 1200 AMOLED with ±5D diopter adjustment
• Viewing Comfort – 25mm eye relief and a 10mm exit pupil
• Image Processing – R+ image processing with electronic image stabilisation
• Dual Battery – built-in battery plus a replaceable 18650, up to 6 hours
• Tough Build – full-rubber coating and IP67 rating
• One-Handed Operation – four-button layout with scroll wheels

Specification

• Brand: NOCPIX
• Model: Quest H50R
• SKU: NPBIN-QUEST-H50R
• Thermal Sensor: 640 × 512, 12μm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Objective Lens: 50mm, F1.1
• Magnification: 4–32x
• Field of View: 8.8° × 7.0° (15m × 12m at 100m)
• Detection Range: up to 2,600m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 0.72 inch AMOLED, 1920 × 1200
• Eye Relief: 25mm
• Laser Rangefinder: up to 1,000m
• Battery: built-in battery plus replaceable 18650 battery
• Battery Life: up to 6 hours at 22°C
• Storage: 64GB
• Weight: 700g without battery
• Dimensions: 175 × 138 × 66mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: Quest series Thermal Imaging Binocular; Portable bag; 2 x 18650 battery; Data cable; Neck Strap; Lens cleaning cloth; Quick start guide; Lens cap; 18650 Battery charger
