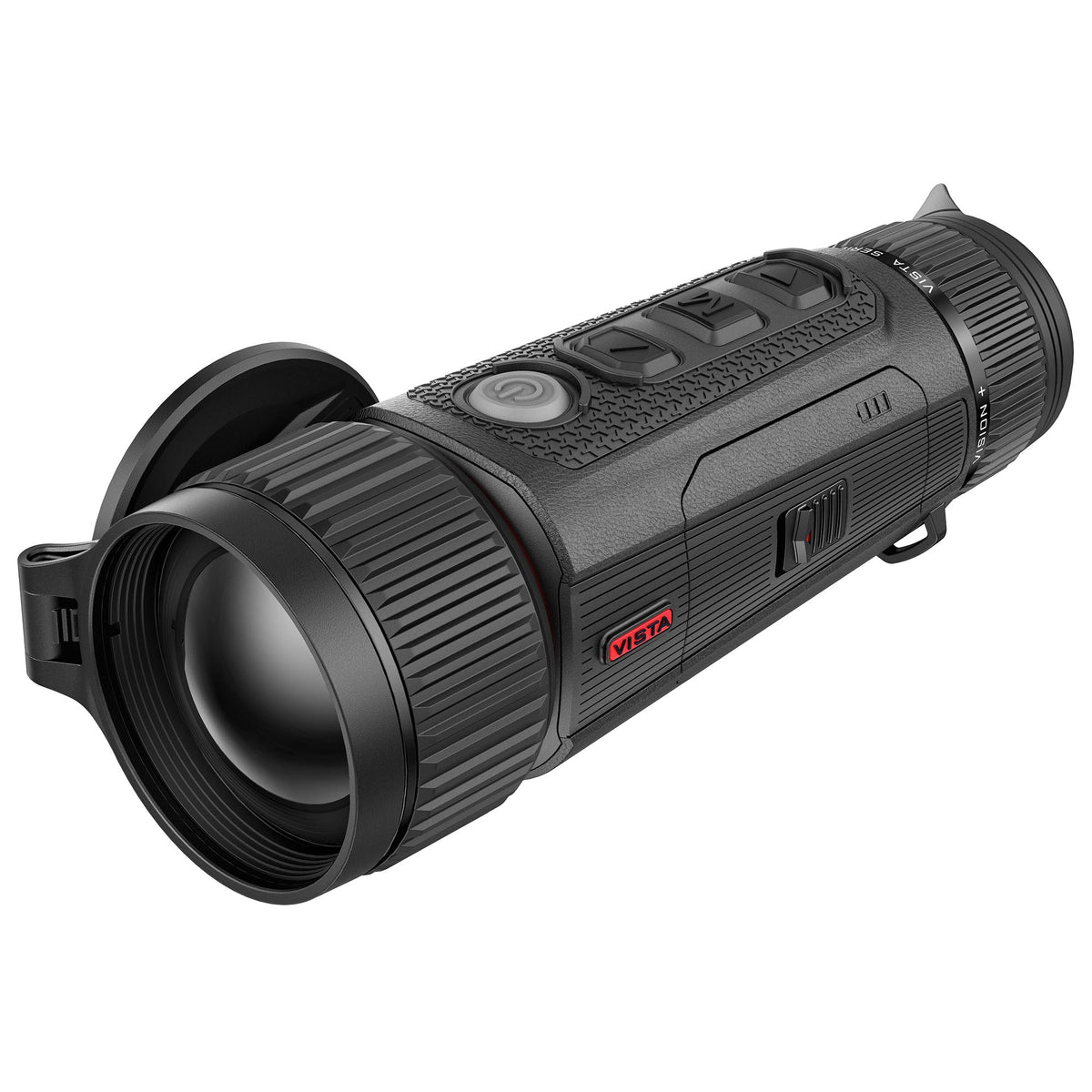

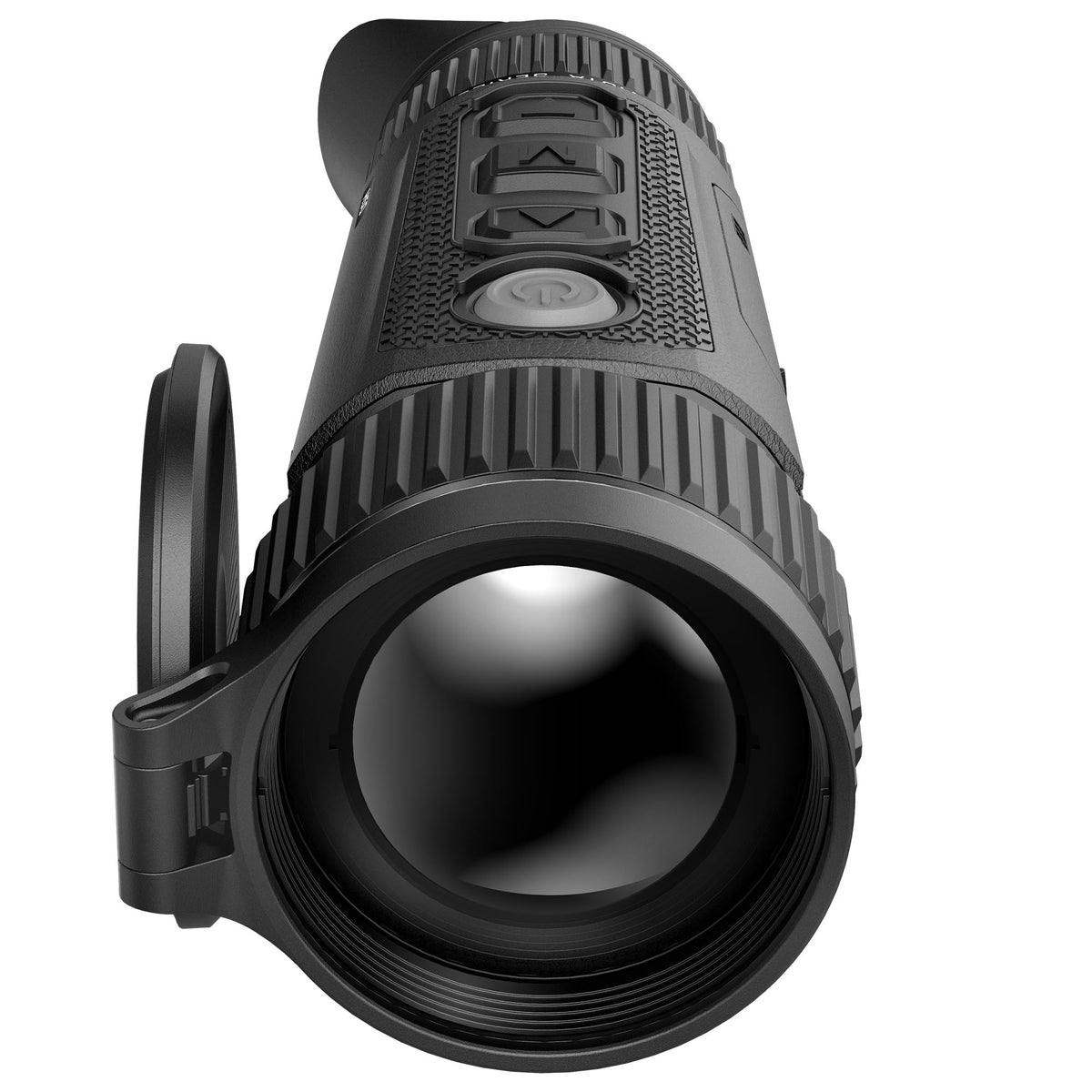

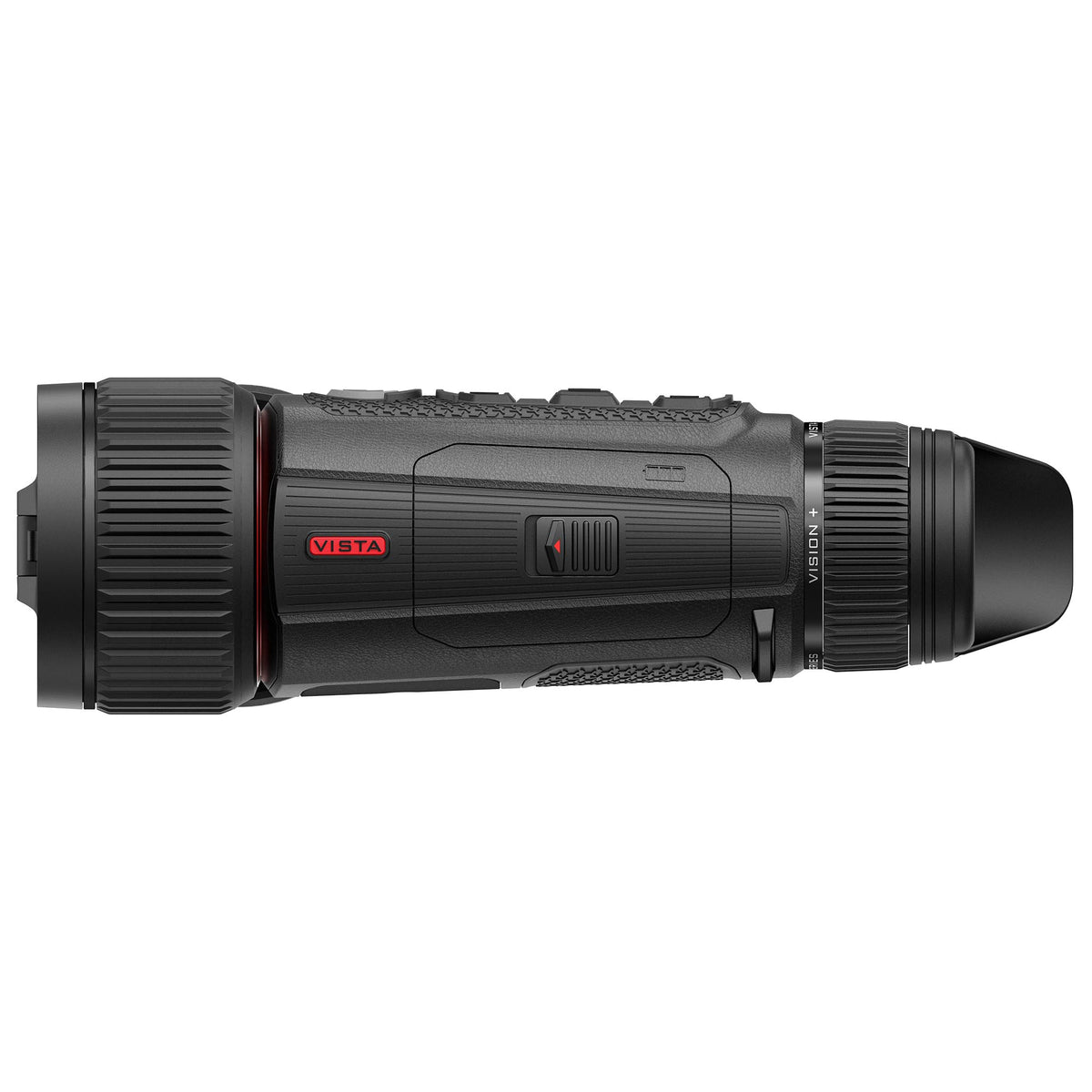

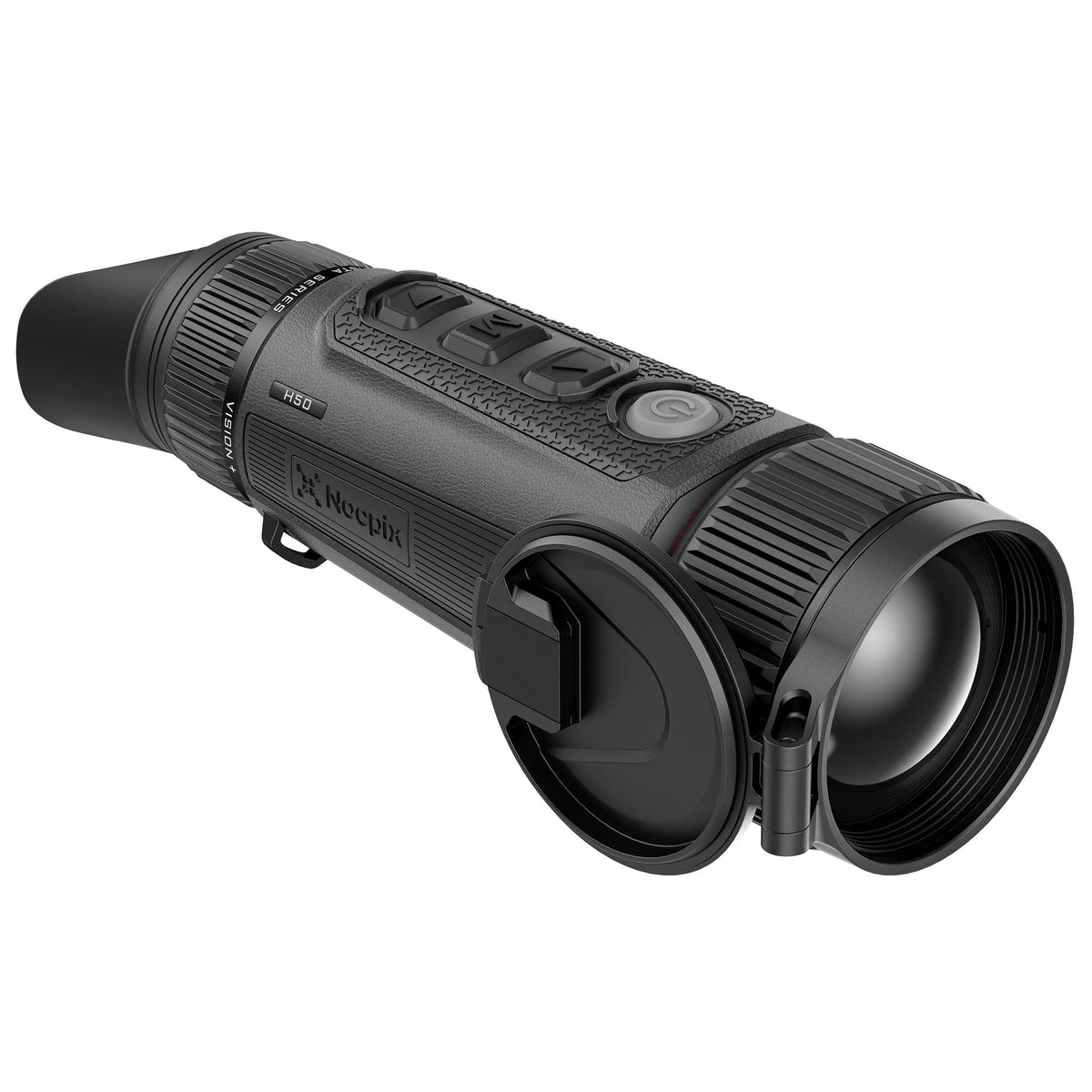

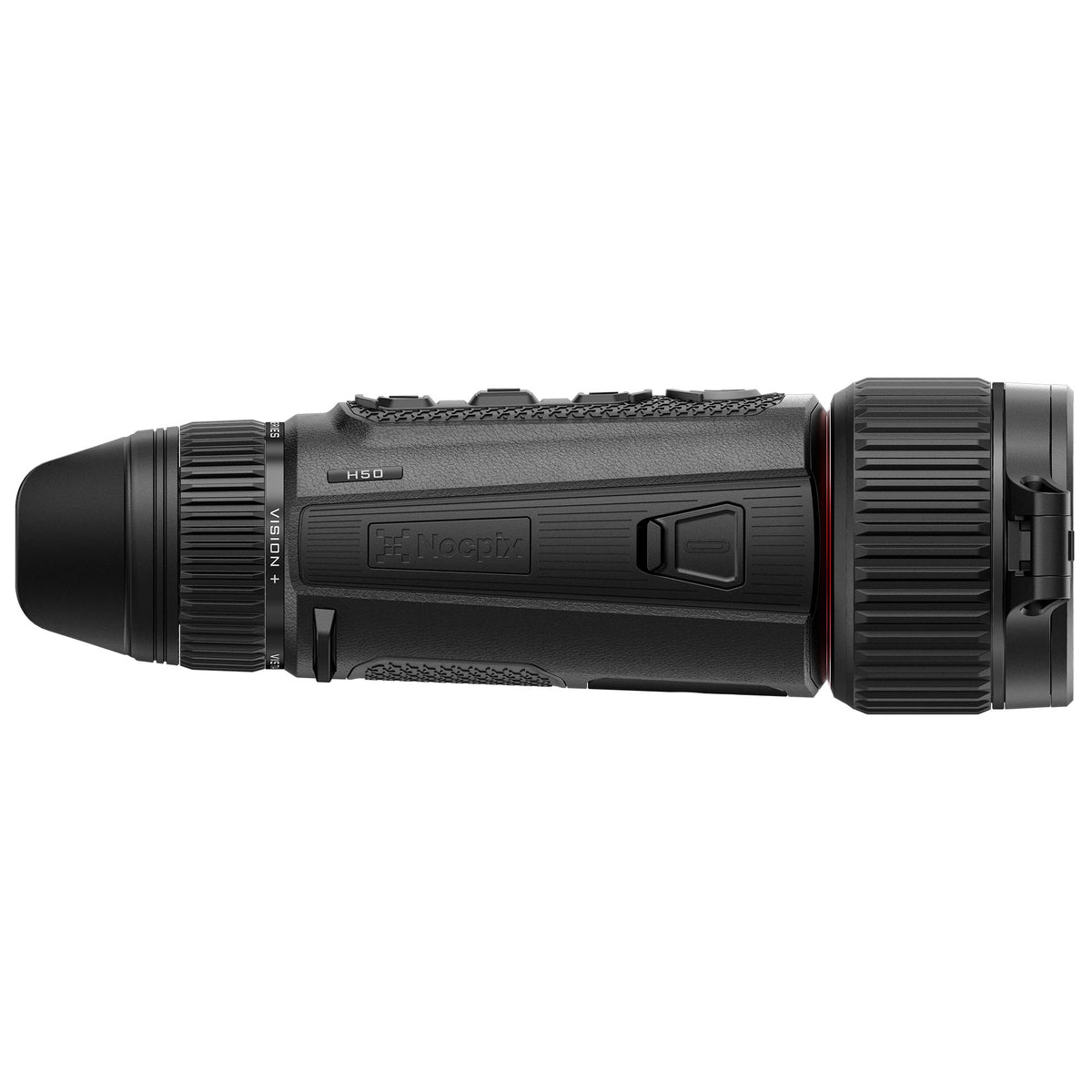

NOCPIX Vista H50 Thermal Monocular

The NOCPIX Vista H50 is a handheld thermal monocular with a 640 × 512 12μm sensor, a 50mm F0.9 lens and a round AMOLED display.

Key Features

• Sensor – 640 × 512 12μm, NETD ≤15mK and 60Hz refresh
• Display – 1.03 inch round AMOLED, 2560 × 2560
• Image Modes – Ultra Clear mode and electronic image stabilisation
• Eye-Friendly Display – low brightness, colour palette and warm hue options
• Battery Packs – two IBP-7 packs supplied, up to 5.5 hours per pack
• Built for the Field – IP67 rated, 64GB of storage and a microphone

Specification

• Brand: NOCPIX
• Model: Vista H50
• SKU: NPMON-VISTA-H50
• Thermal Sensor: 640 × 512, 12μm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Objective Lens: 50mm, F0.9
• Magnification: 4–40x
• Field of View: 8.8° × 7.0° (15m × 12m at 100m)
• Detection Range: up to 2,600m against a 1.7m × 0.5m target (manufacturer's figure)
• Display: 1.03 inch AMOLED, 2560 × 2560
• Eye Relief: 25mm
• Battery: replaceable IBP-7 battery pack, 4400mAh
• Battery Life: up to 5.5 hours at 22°C
• Storage: 64GB
• Weight: 630g with battery
• Dimensions: 190 × 67 × 79mm
• Ingress Protection: IP67
• Operating Temperature: −20 to +50°C
• In Box: VISTA series Thermal Imaging Monocular; Portable bag; 2 x IBP-7 battery pack; Data cable; Neck Strap; Lens cleaning cloth; Quick start guide
